IAI Rcon User Manual

2.1 Installation
B2-3
ME0384-4A
Startup Section
Chapter 2 Mounting and Wiring

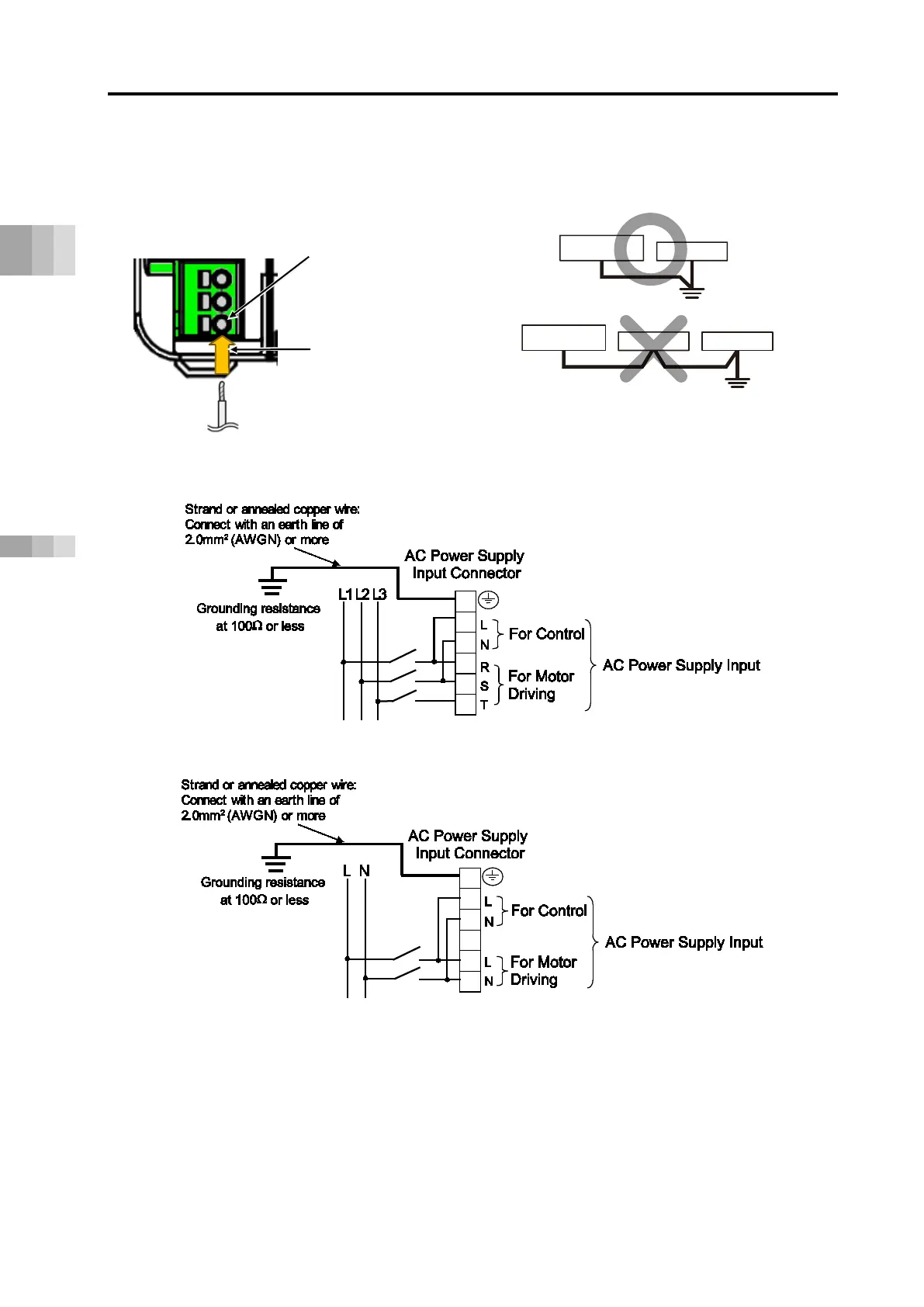

[Noise countermeasures and mounting method]
(1) Grounding for noise countermeasures (frame ground)
[24V DC]
[200V 3-Phase Type]
[200V Single-Phase Type]
(2) Notes on wiring method
1) Twist the power wiring.
2) Separate the wiring of signal wires and encoders from power supply lines and power lines.
Annealed copper wire: 1.6 mm diameter
Connect with a ground wire of
(2 mm
2
: AWG14) or higher.
Ground terminal
Grounding resistance: 100
Ω or less
(Class D grounding construction)
Controller
Other devices
Other devices
Other devices
Controller
Grounding wires should not be connected
in common with other devices and
separate controllers should be grounded.
Connect the ground wire to the FG
terminal block of the main body
.
Push in the square hole with a
screwdriver or the like to connect.
