2.1 System Configuration
A2-2
ME0384-4A
Chapter 2 System Configuration and Specifications
[Precautions when selecting a motor/encoder cable]
Depending on the actuator model, a connector conversion unit and a motor/encoder cable, etc.,
may be required to connect the driver unit and the simple absolute unit.
For details, refer to "2.5 Connection Diagrams / Motor/encoder circuit (page A2-43)".
[Caution when Connecting Terminal Unit]
The terminal unit to be connected on the right end should differ depending on the cases when
the system consists of only the 24V driver units and when it consists of the 200V driver units.
When the 200V driver units are to be used, make sure to use the terminal unit for 200V (RCON-
GW-TRS) enclosed in the 200V power supply unit. The terminal unit for 24V has a structure that
does not allow itself connected to the 200V driver unit, however, it could be forcefully inserted,
which could cause fire on the connector as well as damage on it.

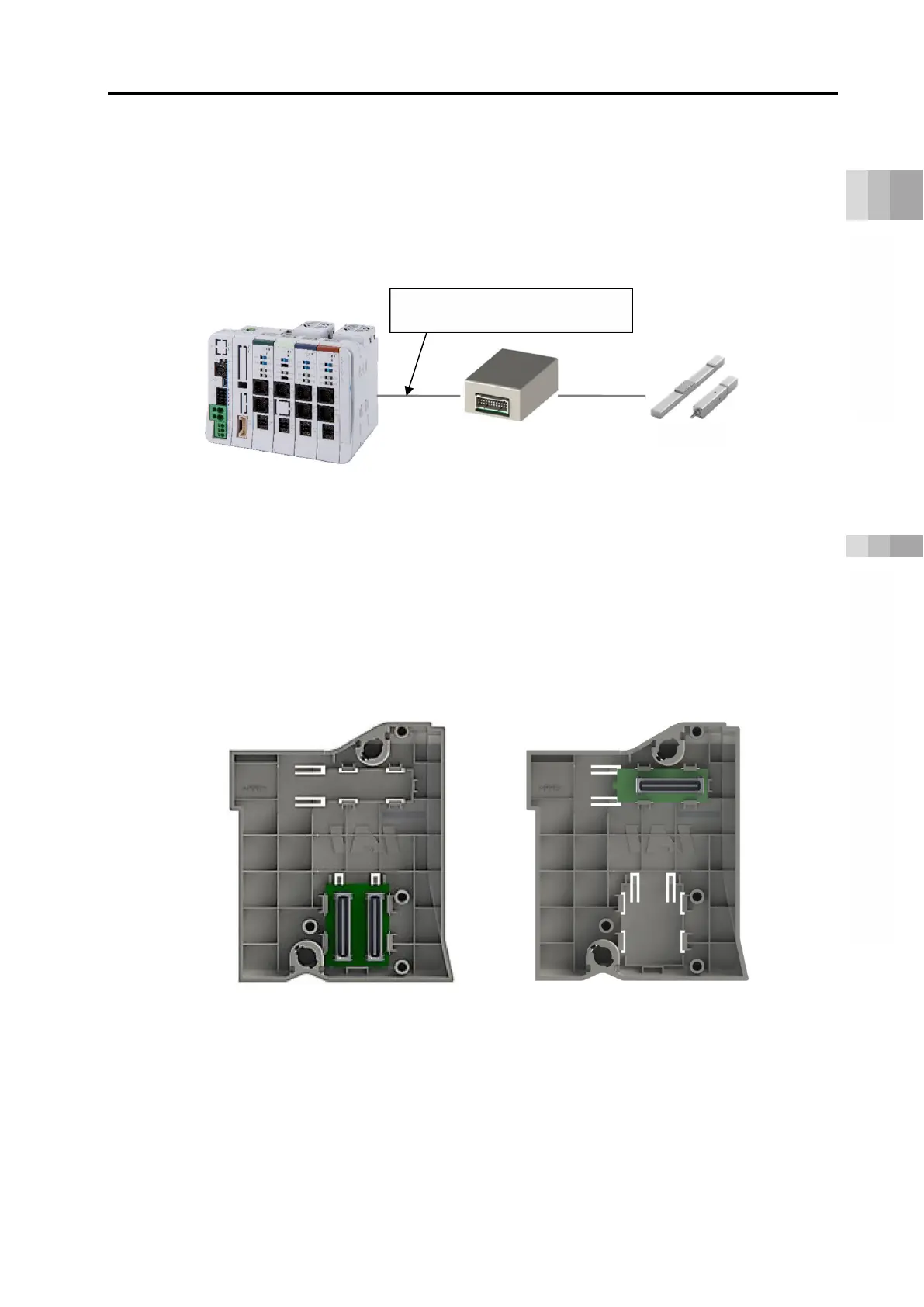

Motor/encoder cable
Model: CB-ADPC-MPA□□□(-RB)
RCP/RCA
Connector conversion unit
Model: RCM-CV-APCS
Terminal Unit (for 24V)
RCON-GW-TR
Terminal Unit for 200V
