6.1 Parameter
B6-7
ME0384-4A
Startup Section

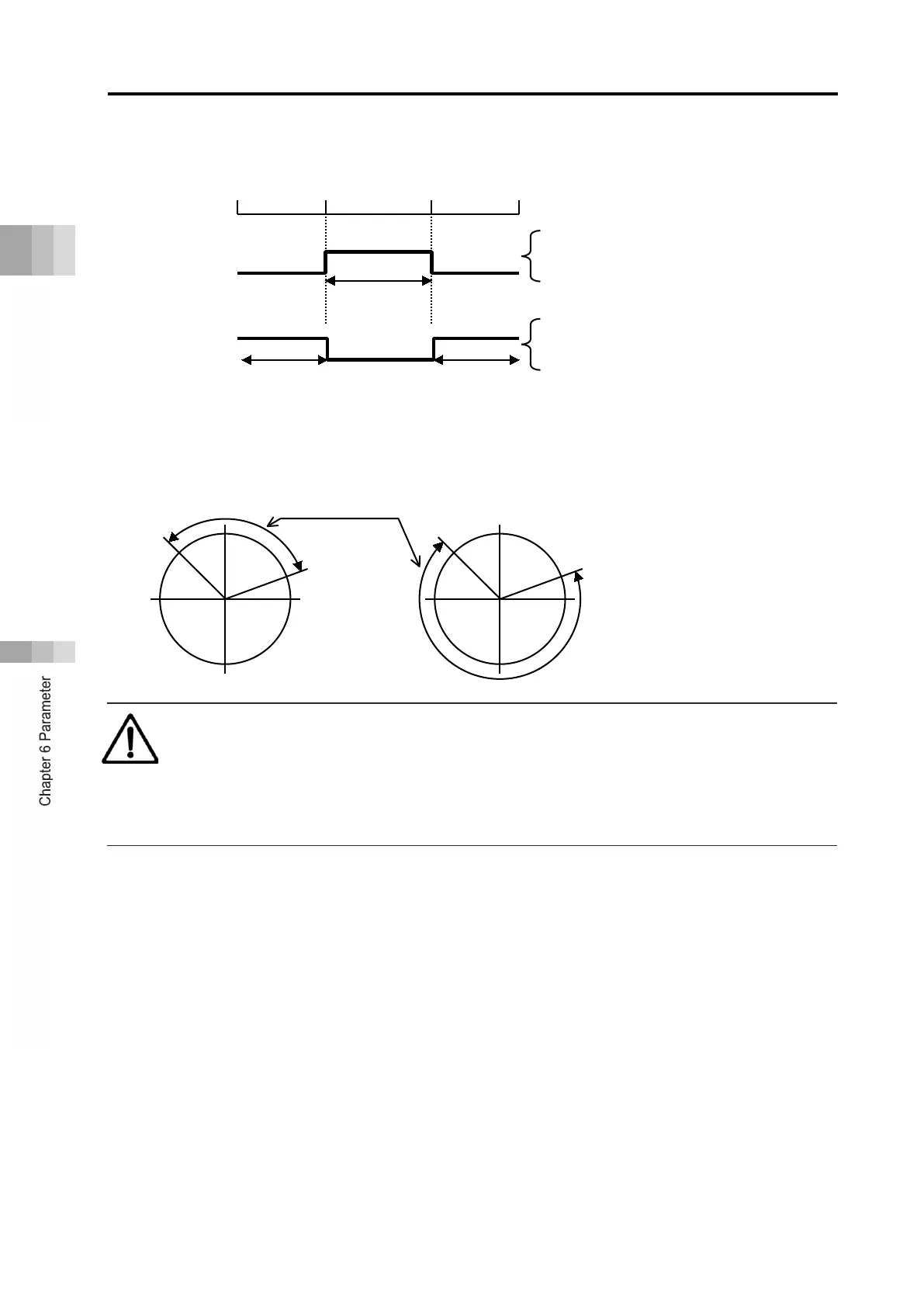

[For linear axis]
[For rotary actuator in index mode]
Caution
● Unless the zone signal detection range is set at a value above minimum resolution, a
signal will not be output.
● The minimum resolution can be calculated with the equation below.
Minimum resolution [mm/pulse] = Actuator lead [mm/r] / Encoder resolution [pulse/r]
Zone signal ON range
315°
315°
0° 0°
70°
70°
Present position
Zone signal
Zone signal
Set value
Zone boundary + side: 70 mm
Zone boundary - side: 30 mm
Set value
Zone boundary + side: 30 mm
Zone boundary - side: 70 mm
ON
ON
ON
0mm
30 mm
70 mm
100 mm
