2.3 Specifications
A2-23
ME0384-4A
Specifications Section
Chapter 2 System Configuration and Specifications

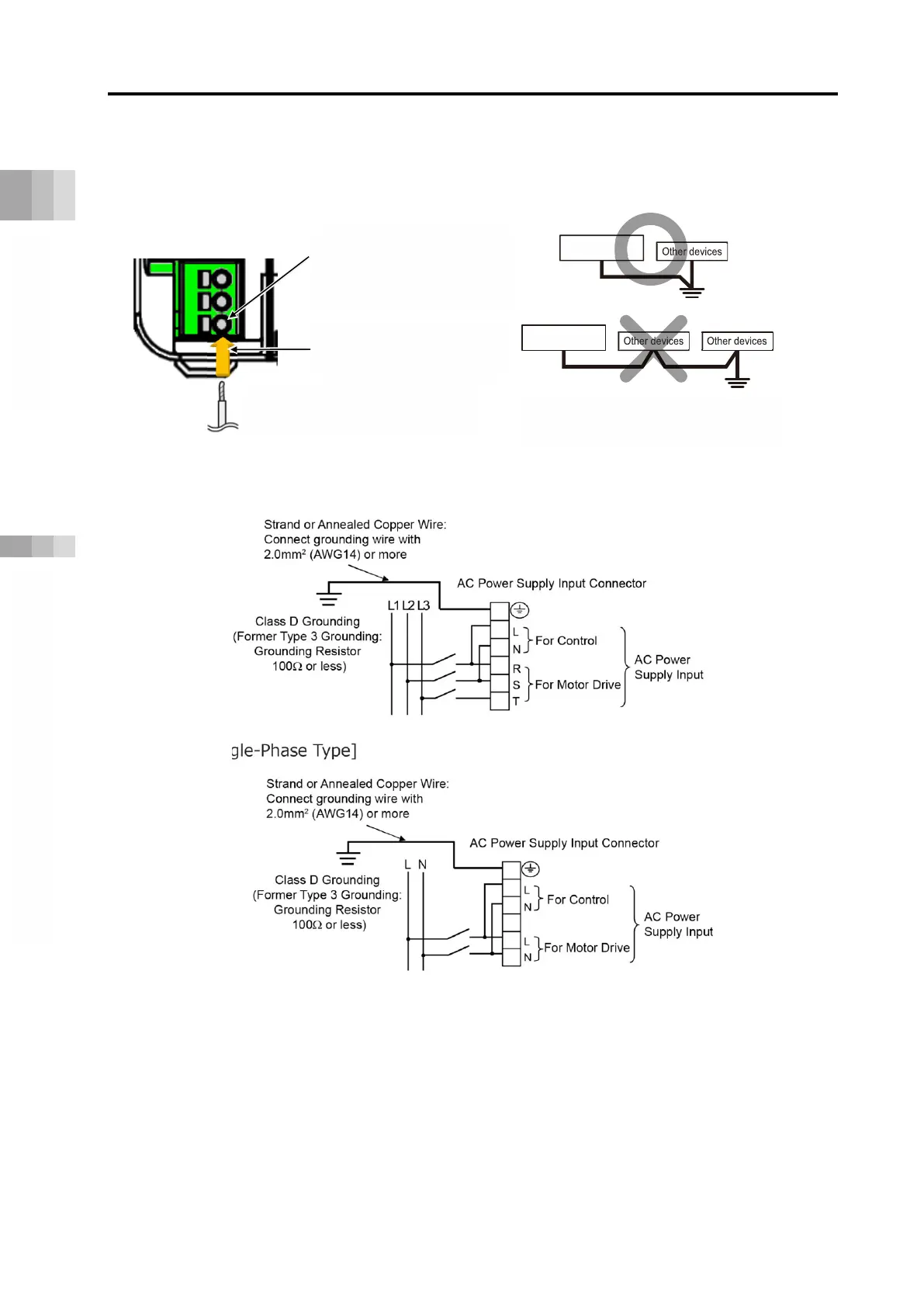

[Noise countermeasures and mounting method]
(1) Grounding for noise countermeasures (frame ground)
[DC24V]
[200V 3-Phase Type]
[200V Single-Phase Type]
(2) Notes on wiring method
1) Have the power supply wires twisted.
2) Separate the wiring of signal wires and encoders from power supply lines and power
lines.
Annealed copper wire: 1.6 mm
diameter
Connect with a ground wire of
(2 mm
2
: AWG14)
Ground terminal
Grounding resistance: 100
Ω or less
(Class D grounding construction)
Connect the ground wire to the
FG terminal block of the main
body.
Push in the square hole with a
screwdriver or the like to connect.
Controller
Controller
Grounding wires should not be connected
in common with other devices and
separate controllers should be grounded.
