IAI Rcon User Manual

2.5 Connection Diagrams
A2-33
ME0384-4A
Specifications Section
Chapter 2 System Configuration and Specifications
Gateway unit
Driver unit
Teaching pendant
Stop switch
SIO connector
Note
System I/O
connector
24V
dedicated
for stop
circuit
Drive
Cutoff
Circuit
Wiring
done
before
delivered
Stop
switch

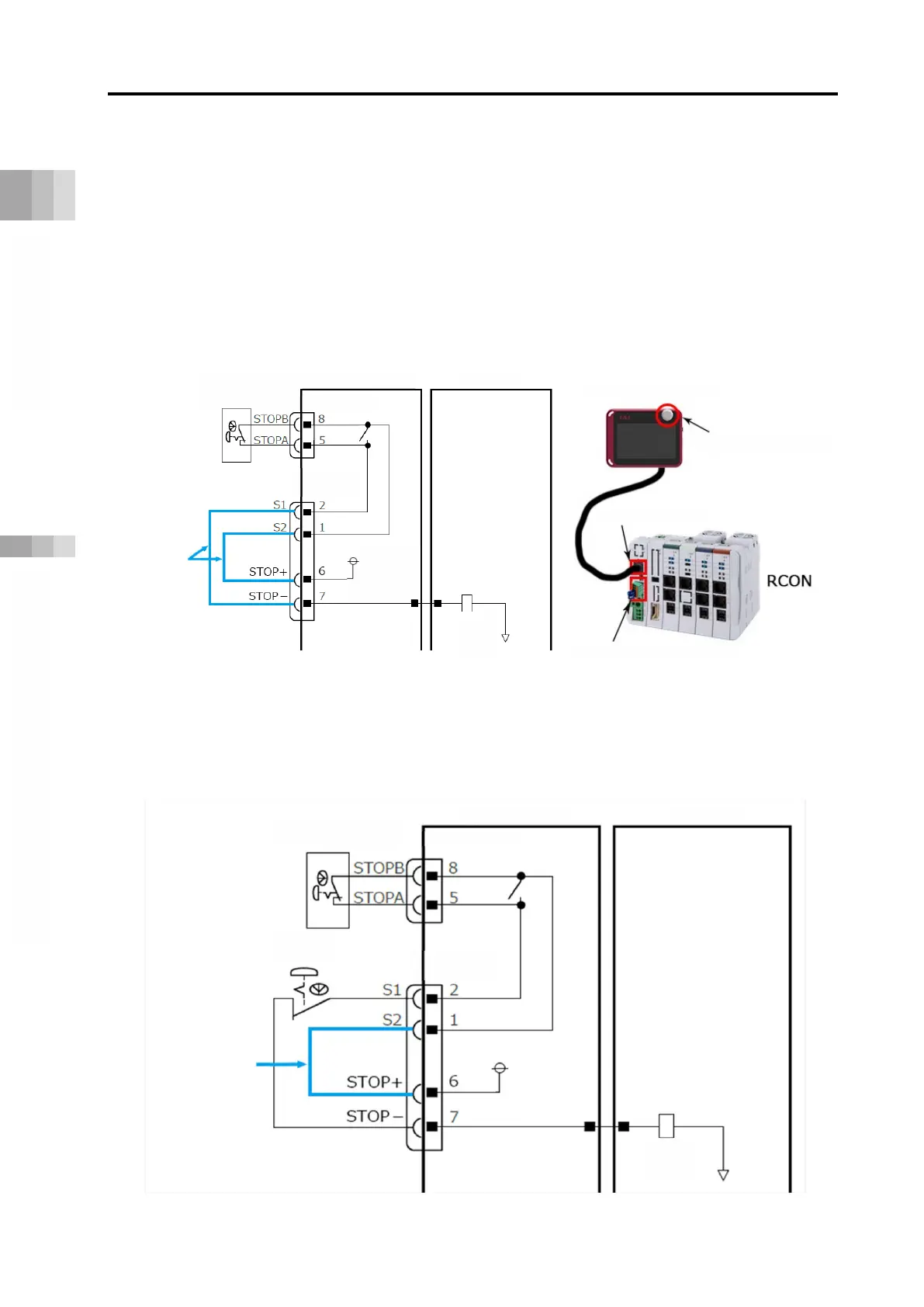

Three conditions below are shown as an example of circuit.
(1) When operating an actuator by using the stop input on the teaching pendant
(2) When operating an actuator with the stop input activated on the equipment and teaching
pendant
(3) When reflecting the stop switch on the teaching pendant to the stop circuit in the
equipment
(1) When operating an actuator by using the stop input on the teaching pendant
[Example of Circuit] [Wiring Layout Image]
Note1: Refer to A2-35
(2) When operating an actuator with the stop input activated on the equipment and teaching
pendant
[Example of Circuit]
Note 1 : Refer to page A2-35.
System I/O connector
SIO connector
Teaching pendant
Stop switch is valid
Gateway unit
Driver unit
Teaching pendant
Stop switch
SIO connector
Note 1
System I/O
connector
24V
dedicated
for stop
circuit
Drive
Cutoff
Circuit
Wiring done
before
delivered
