ICON A5 - Page 248

9-12 FLIGHT CONTROLS / ROLL CONTROLS
ICON A5 / MAINTENANCE MANUAL CHANGE C3
CHAPTER 9

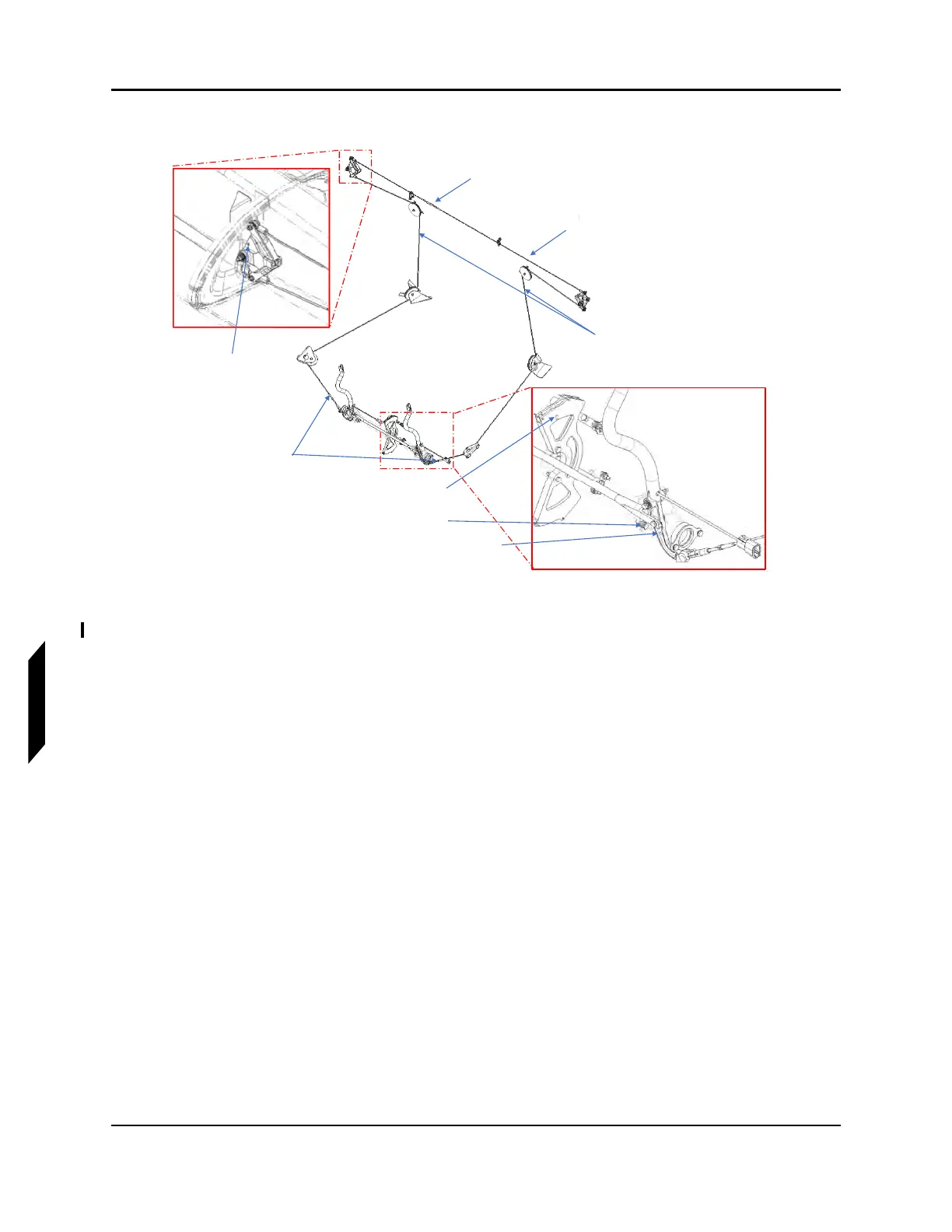

FIGURE 9-7
FUSELAGE ROLL SYSTEM DETAILED VIEW
Upper Roll Cable
Tensiometer Location
BL38 Clamshell Rig
Pin Hole
U
pp
e
T
e
n
s
i
RH&LH Lower
Roll Cable
Turnbuckles
RH&LH Lower Roll
Cables Tensiometer
Location
FWD Pitch Sector Rig Pin Hole
Secondary Stop
Control Stick Rig Pin Hole
Upper Roll Cable
Turnbuckle
