FUEL SYSTEM / FINE FUEL FILTER 10-33
CHANGE C2 ICON A5 / MAINTENANCE MANUAL
FIGURE 10-14

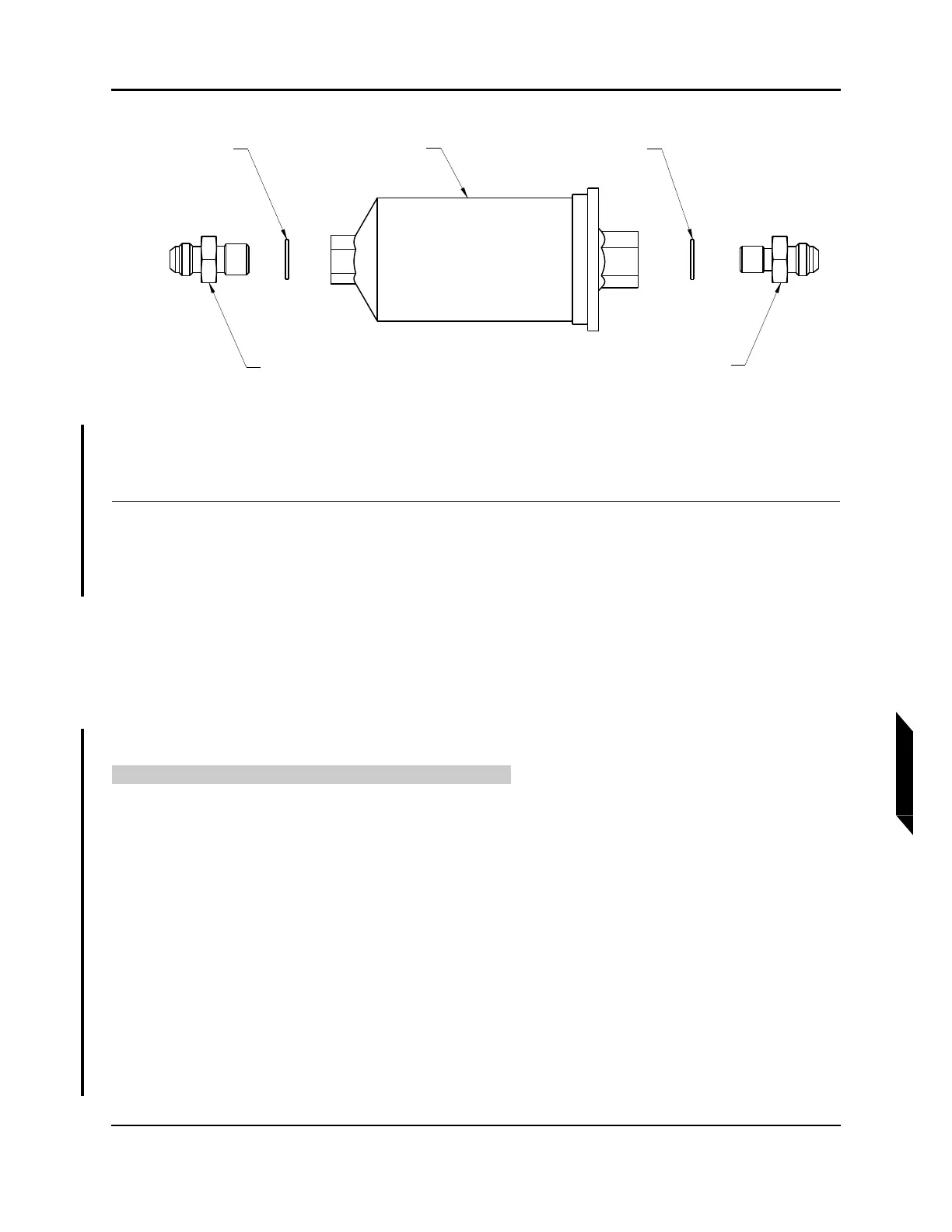

FINE FUEL FILTER EXPLODED VIEW LOOKING AFT
12. Use 7/8 and 3/4 wrenches to remove the outlet adapter fitting from the filter. Discard the 12mm
washer.
VERIFICATION METHOD:
Task is completed when the fine fuel filter has been removed.
RELATED INFORMATION:
"Install Fine Fuel Filter" on page 10-33
"Headliner Removal" on page 3-37
10.7.1.2 Install Fine Fuel Filter
Use the following instruction to install the fine fuel filter.
TASK INFORMATION:
Type of Maintenance
Line
Level of Certification
LSA-RM
Task Specific Training Required
No
Special Tools Required
None
Parts Required
14MM ID COPPER WASHER
INLET ADAPTER FITTING
-6 JIC X 14MM
12MM ID COPPER WASHER
OUTLET ADAPTER FITTING
-6 JIC X 12MM
6.5 MICRON
FUEL FILTER
