ICON A5 - Inspect Pitch Rigging

9-44 FLIGHT CONTROLS / PITCH CONTROLS
ICON A5 / MAINTENANCE MANUAL CHANGE C3
CHAPTER 9
FIGURE 9-32

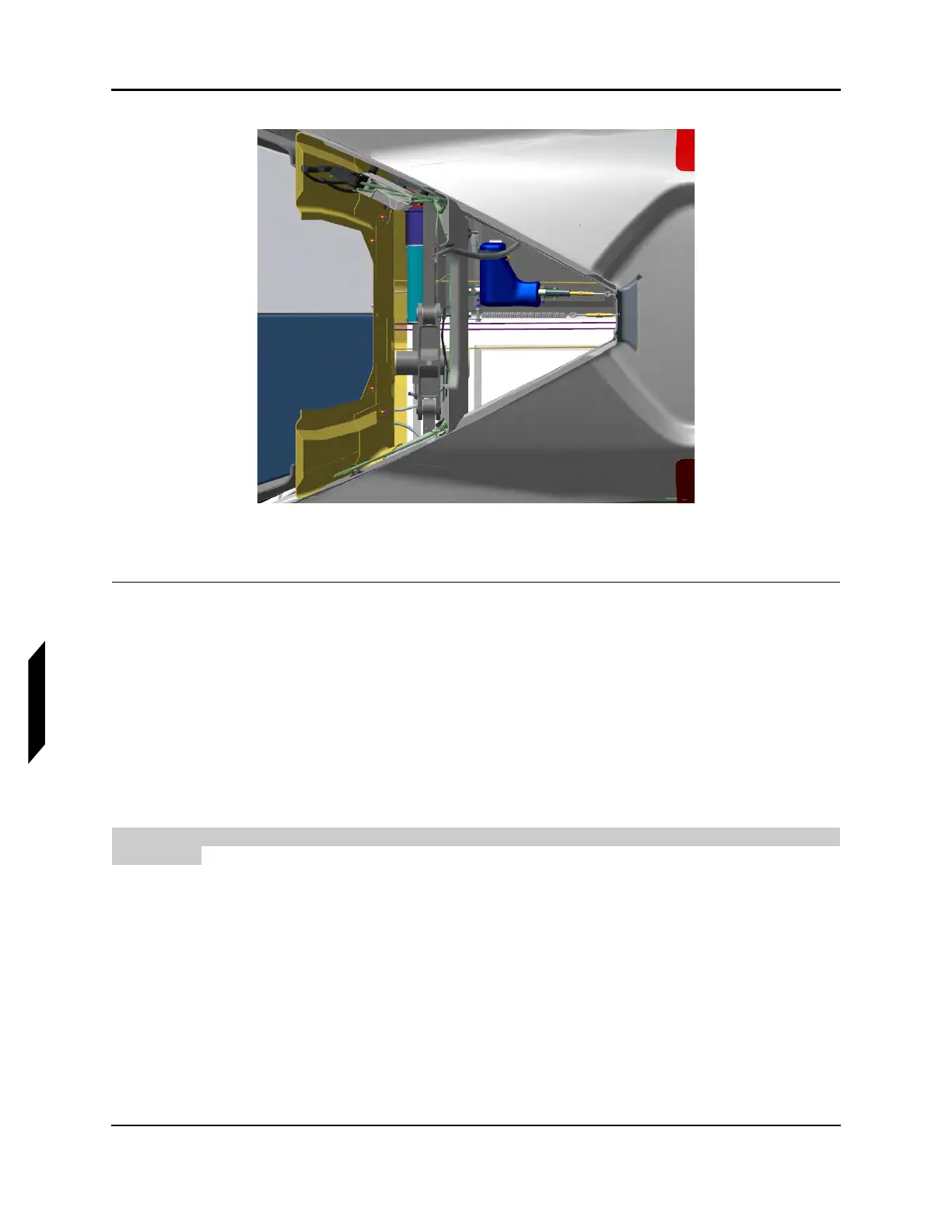

ELEVATOR CABLE TENSION CHECK LOCATION. VIEW IS LOOKING DOWN WITHIN THE
ACCESS HOLE.
VERIFICATION METHOD:
Refer to the manufacturers’ calibration card to correctly read cable tension for the cable diameter.
RELATED INFORMATION:
"Condition and 100-Hour Inspection—Aft Fuselage and Empennage" on page 3-19
9.6.3.2 Inspect Pitch Rigging
The following section contains the information required to perform the A5 maintenance inspection on
the elevator.
TASK INFORMATION:
Type of Maintenance
Line
Level of Certification
LSA-RM
Task Specific Training Required
No
