FLIGHT CONTROLS / ROLL CONTROLS 9-13
CHANGE C3 ICON A5 / MAINTENANCE MANUAL
FIGURE 9-8

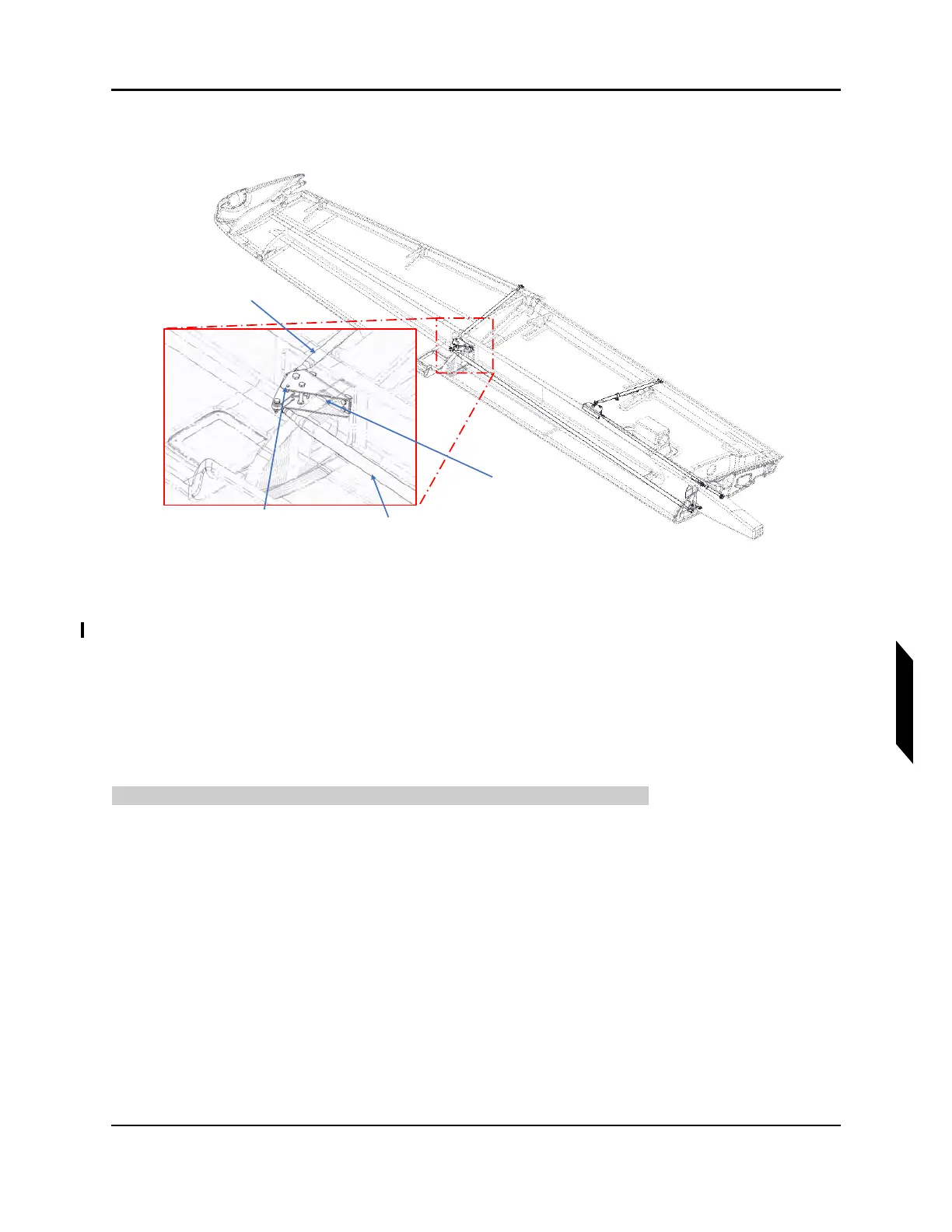

WING ROLL SYSTEM OVERVIEW
9.4.3 Inspection Instructions
9.4.3.1 Inspect Roll Cable Tension
This section contains instructions to check roll cables for correct tensions.
TASK INFORMATION:
Type of Maintenance
Line
Level of Certification
LSA-RM
Task Specific Training Required
No
Special Tools Required
Tensiometer and Operating Instructions
1 x DIA .250 Rig Pin
Wing Bellcrank Rig
Pin Hole
Inbd Roll Push Tube
Outbd Roll
Push Tube
Bellcrank
Bracket
