ELECTRICAL SYSTEM / FUEL LEVEL SENSOR 6-71
CHANGE C2 ICON A5 / MAINTENANCE MANUAL
CHAPTER 6
6.11 Fuel Level Sensor
6.11.1 Fuel Level Sensor Description
The fuel level sensor is mounted into the tank through the fuel tank access panel. It is connected to
T9026 and T9028 ring terminals with washers and bolts and connected to D9039P on the main wire
harness.
6.11.2 Fuel Level Sensor Diagram/Schematic

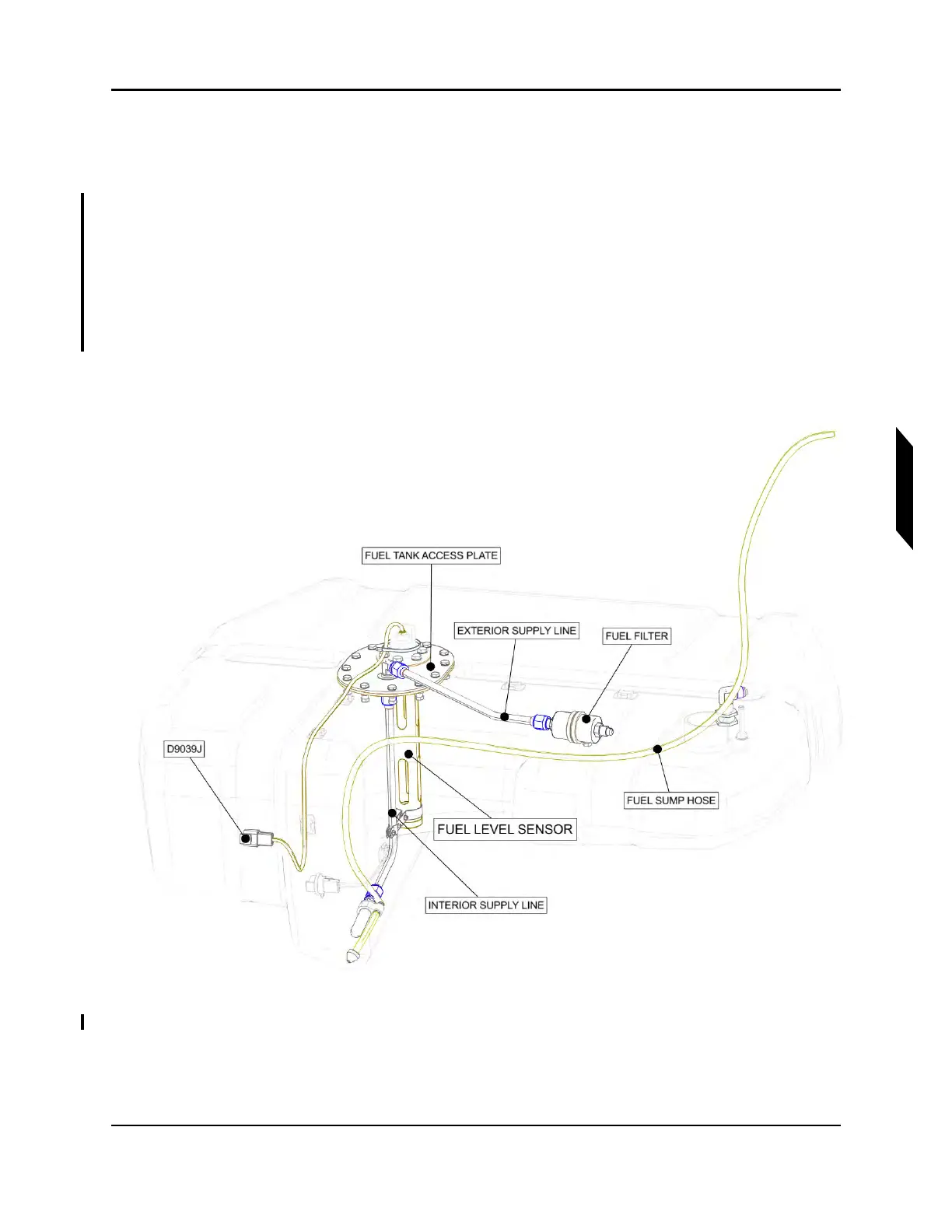

FIGURE 6-21
FUEL LEVEL SENSOR INSTALLATION DIAGRAM
