INSPECTIONS / WEIGHT AND BALANCE—GENERAL 3-27
CHANGE C2 ICON A5 / MAINTENANCE MANUAL
CHAPTER 3
3.4 Weight and Balance—General
This section gives general information about aircraft dimensional data, operating weights, loading
information, and CG limits.
RELATED INFORMATION:
"Weight and Balance Information" on page 2-23
"Empty Weight and CG Measurement While on Gear" on page 3-30
"Empty Weight and CG Measurement While on Jackpoint Scales" on page 3-32
3.4.1 Aircraft Dimensional Data
3.4.1.1 Aircraft Reference Locations

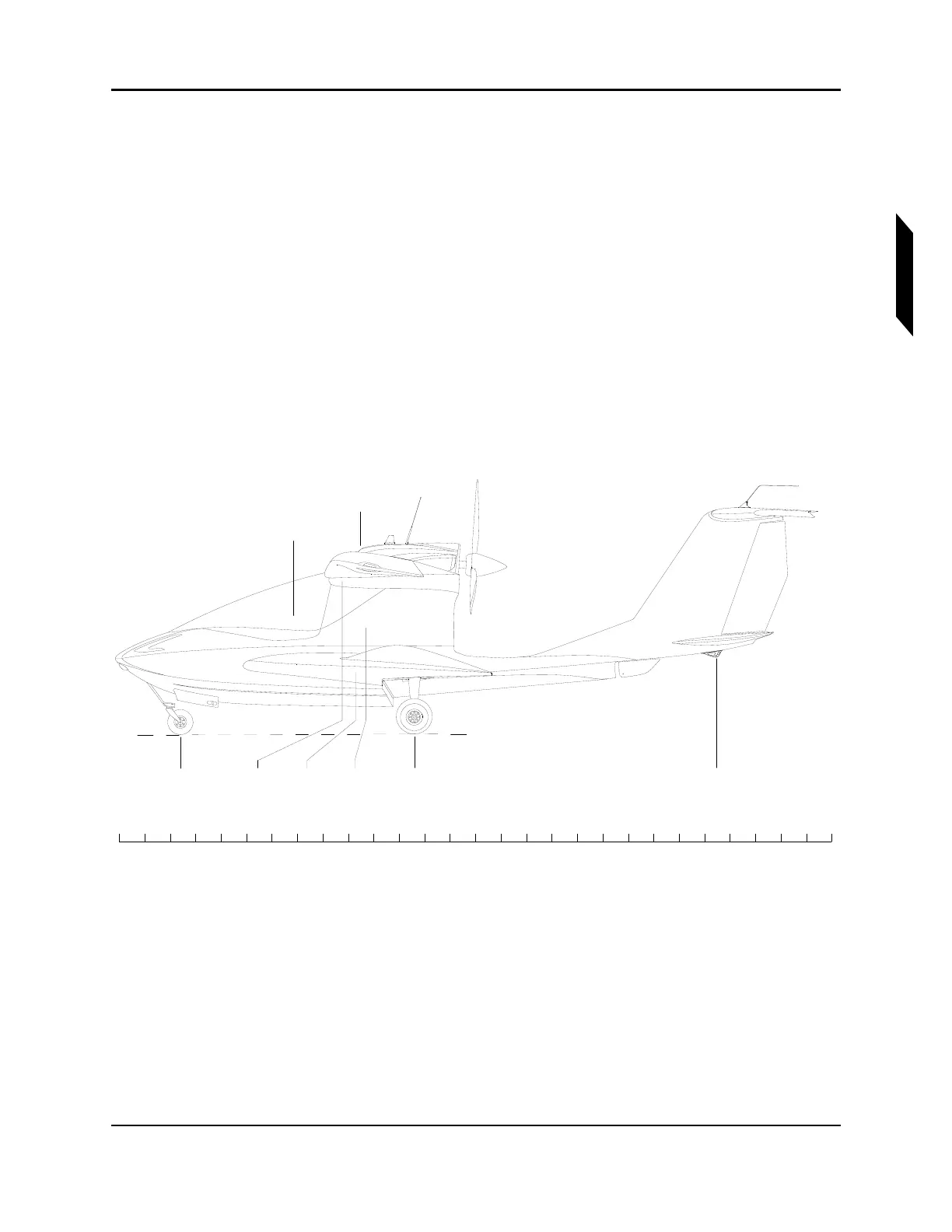

FIGURE 3-1
AIRCRAFT REFERENCE LOCATIONS.
3.4.2 Operating Weights and Loading
Maximum Occupant Weight
250 lb
f
NOTE
: The seats, interior, Seawings™ platforms steps areas, and safety
restraints were designed to this maximum occupant weight.
340 280
80
(FS)
Fuselage
Station
300 180 160 140 120 100 320
60
200 220 240 260
FS
294.63
Aft
Jackpoint
FS
153.0
Fuel
FS
84.5
Nose Gear Axle
(1g empty)
FS
147.7
Wing
Jackpoint
FS
154.75
Spar Datum
FS
128.5
Occupants
FS
176.0
Main Gear
Axle
FS
157.0
Baggage
