FUEL SYSTEM / COARSE FUEL FILTER 10-25
CHANGE C2 ICON A5 / MAINTENANCE MANUAL
10.6 Coarse Fuel Filter
10.6.1 Coarse Fuel Filter Description
The coarse fuel filter is one of two filters in the fuel supply line. The same filter, FX375-M, is used in
both the MY17 and MY18+ ICON A5 and is located above the fuel bladder/tank. Unlike the fine fuel filter,
the coarse fuel filter can be cleaned and does not need to be replaced unless it is damaged.
NOTE: The orientation of the fuel filter is critical to the fuel system.(See
“Coarse Fuel Filter Diagram/Schematic” on page 10-25.)
10.6.2 Coarse Fuel Filter Diagram/Schematic

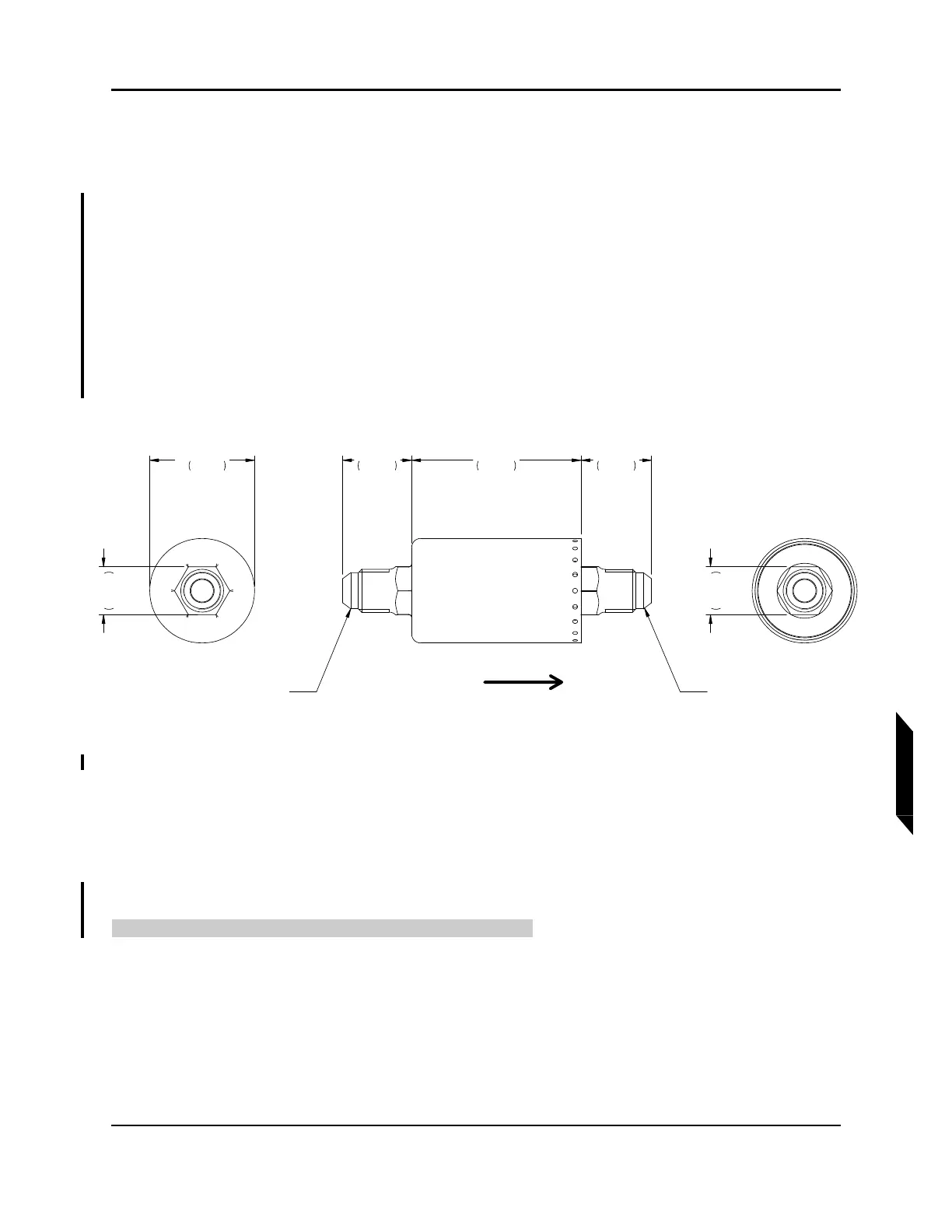

FIGURE 10-9
COARSE FUEL FILTER SCHEMATIC
10.6.3 Maintenance Instructions
10.6.3.1 Clean Coarse Fuel Filter (MY17 Only)
Instructions to clean the coarse fuel filter on MY17 aircraft.
TASK INFORMATION:
Type of Maintenance
Line
Level of Certification
LSA-RM
FLOW
56.5
2.224"
23.5
0.925"
23.0
0.906"
16.0
0.630"
AF
O
35.0
1.378"
Male AN-6 fitting Male AN-6 fitting
16.0
0.630"
AF
