FLIGHT CONTROLS / PITCH TRIM ACTUATOR 9-53
CHANGE C3 ICON A5 / MAINTENANCE MANUAL
CHAPTER 9
9.7 Pitch Trim Actuator
9.7.1 Pitch Trim Actuator Description
The pitch trim actuator is a linear actuator. It moves a pushrod connected to the pitch trim tab.
9.7.2 Pitch Trim Actuator Diagram/Schematic

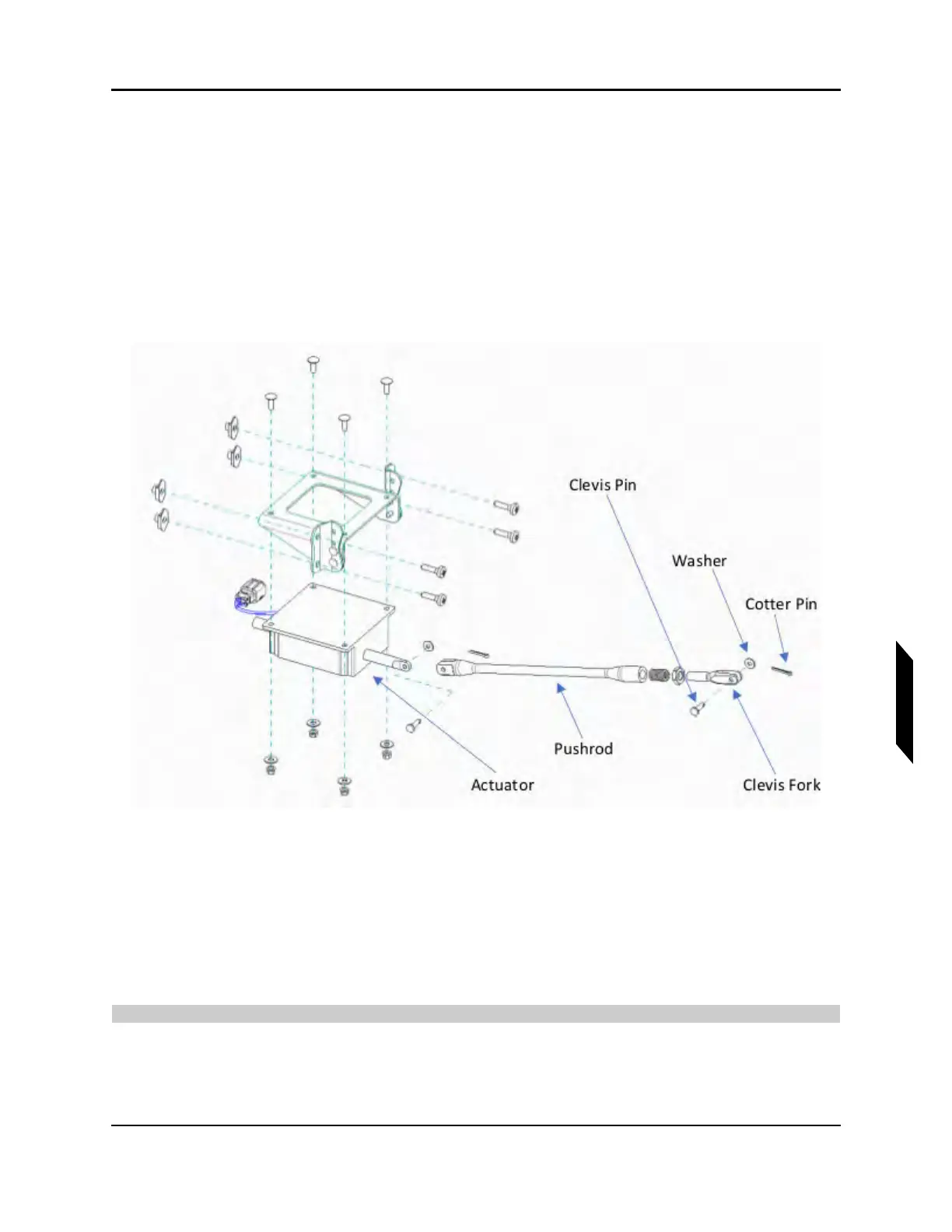

FIGURE 9-39
PITCH TRIM ACTUATOR ASSEMBLY
9.7.3 Maintenance Instructions
9.7.3.1 Remove Pitch Trim Actuator
The pitch trim actuator removal procedure is needed as part of the process of replacing the actuator.
TASK INFORMATION:
Type of Maintenance
