9-102 FLIGHT CONTROLS / YAW CONTROLS
ICON A5 / MAINTENANCE MANUAL CHANGE C3
None
Aircraft System and Number
06—Flight Controls
Consumables
None

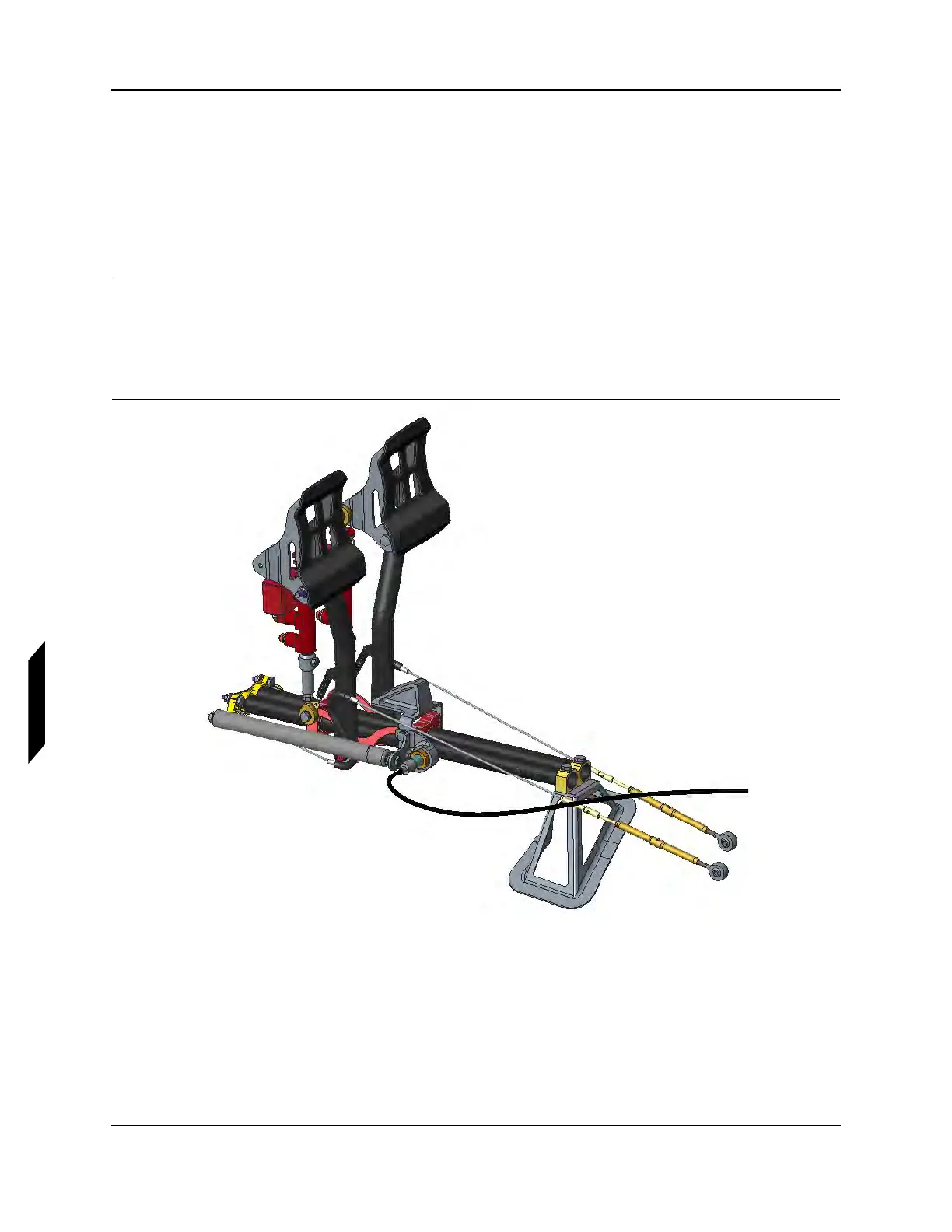

1. With the rudder pedals locked in the middle position, use a digital level to set the angle between
the rudder arms and rudder rails to 90° ± 1°.
2. Remove MS21256-2 turnbuckle clip. Tension the rudder pedal cables to control the angle of
rudder pedal arms using the rudder cable turnbuckles. Re-install MS21256-2 turnbuckle clip.
VERIFICATION METHOD:
If the angle between the arms and rails can’t be set to 90° ± 1° by adjusting the turnbuckles, the control
cables need to be re-rigged. Follow the process for re-rigging. (See “Re-Rigging Rudder Pedals” on
page 9-103.)
