PROPULSION / ENGINE 16-47
CHANGE C2 ICON A5 / MAINTENANCE MANUAL

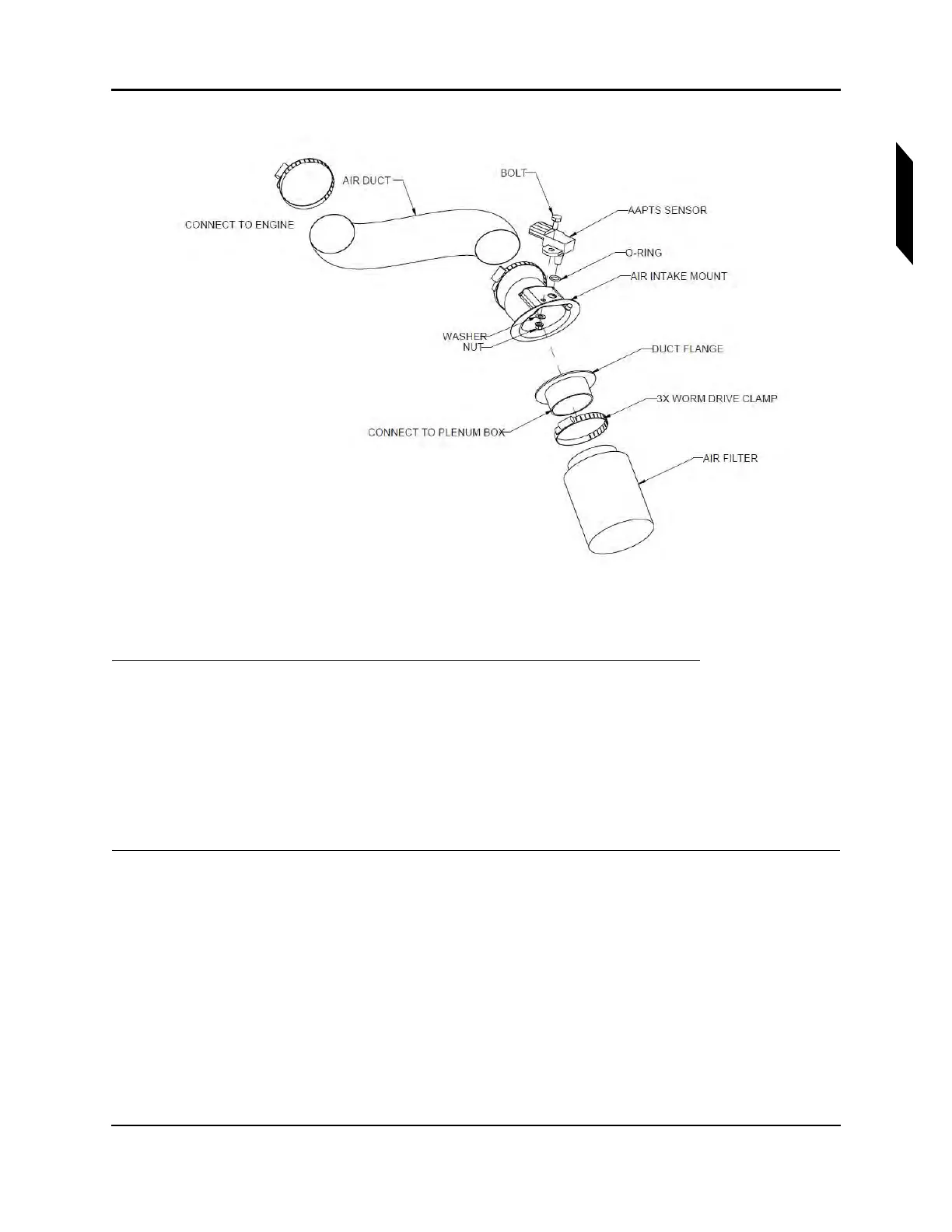

FIGURE 16-29
AIR FILTER AND ENGINE INTAKE INSTALLATION DETAIL.
1. To reach the air filter, stand on the pilot side Seawings™ platform.
2. Use screw driver to loosen air filter worm drive clamp.
3. Remove filter and clamp from intake duct flange.
4. Clean and oil using K&N Recharger Kit per K&N Air Filter Cleaning Instructions.
5. Return air filter and clamp to intake duct flange.
6. Tighten worm drive clamp onto intake duct flange.
VERIFICATION METHOD:
Run engine after re-installation of air filter and verify normal performance.
