PROPULSION / ENGINE 16-49
CHANGE C2 ICON A5 / MAINTENANCE MANUAL
RELATED INFORMATION:
"Clean Engine Air Filter" on page 16-46
"Air Filter Cleanliness Inspection" on page 16-43
16.1.6 Exhaust System
16.1.6.1 Exhaust System Diagram/Schematic
FIGURE 16-30

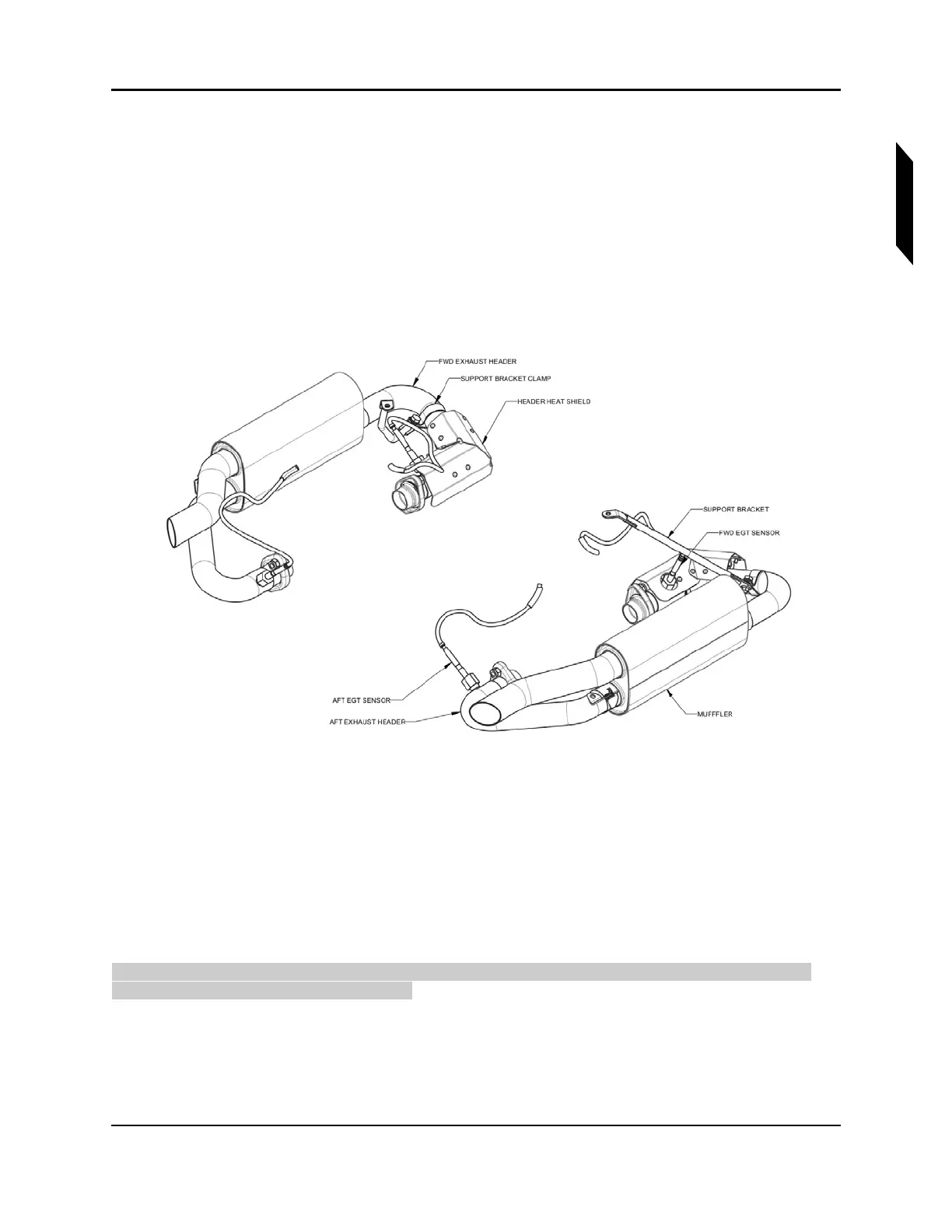

EXHAUST SYSTEM—ISOMETRIC VIEW
16.1.6.2 Maintenance Instructions
16.1.6.2.1 Remove Exhaust System
Use the following procedure to remove one side of the exhaust system. Repeat the procedure to
remove both sides of the exhaust system.
TASK INFORMATION:
Type of Maintenance
Line
