16-70 PROPULSION / ENGINE
ICON A5 / MAINTENANCE MANUAL CHANGE C2
CHAPTER 16
16.1.8.2 Oil System Diagram/Schematic

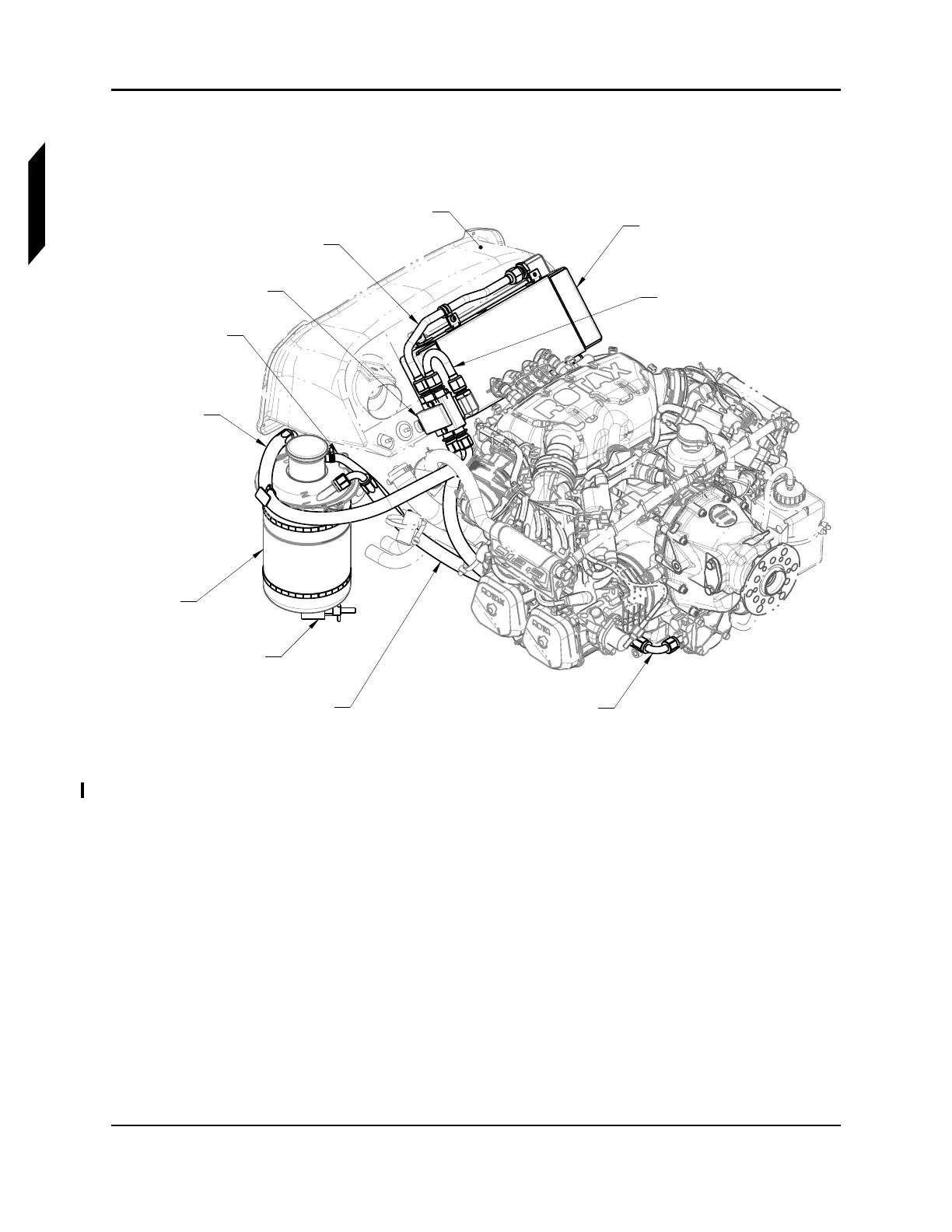

FIGURE 16-43
OIL SYSTEM COMPONENTS—TOP, FWD, LHS VIEW
OIL TANK
TANK-THERMOSTAT
HOSE
OIL COOLER
CURTIS OIL VALVE
THERMOSTAT-ENGINE HOSE
ENGINE-TANK HOSE (RETURN LINE)
OIL THERMOSTAT
PLENUM AIR BOX
PURGE HOSE
THERMOSTAT-OIL
COOLERLINE
OIL COOLER-THERMOSTAT
LINE
