19-12 ICON PARACHUTE SYSTEM (IPS) / PARACHUTE PACKAGE
ICON A5 / MAINTENANCE MANUAL CHANGE C1

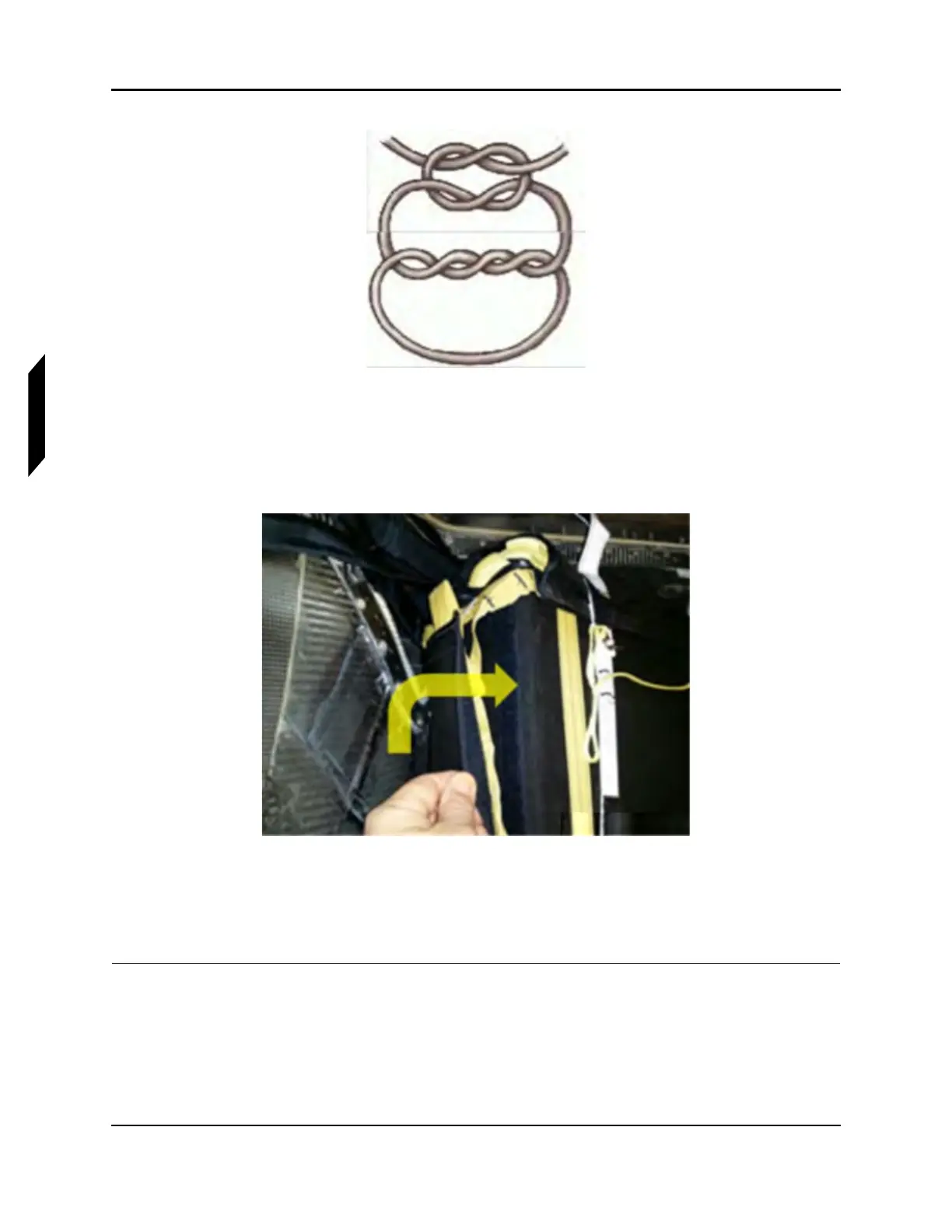

FIGURE 19-4
KNOT SECURING RELEASE PIN
NOTE: Release pins are installed by BRS prior to delivery.
3. Pull the flap on the left side to cover the rocket collar line and the incremental harness and secure
the flap using Velcro
®
along the top left edge of the parachute deployment bag.
FIGURE 19-5
SIDE FLAP CONTAINING COLLAR LINE AND INCREMENTAL HARNESS
NOTE: Items are secured under flap when system is delivered from BRS
Aerospace. This step is identified in case the lanyard and incre-
mental have been removed during system installation.
VERIFICATION METHOD:
The procedure is complete when the parachute package has been properly installed and the para-
chute release pin and retention straps are secure.
