Diagnostic information 2-87
5026

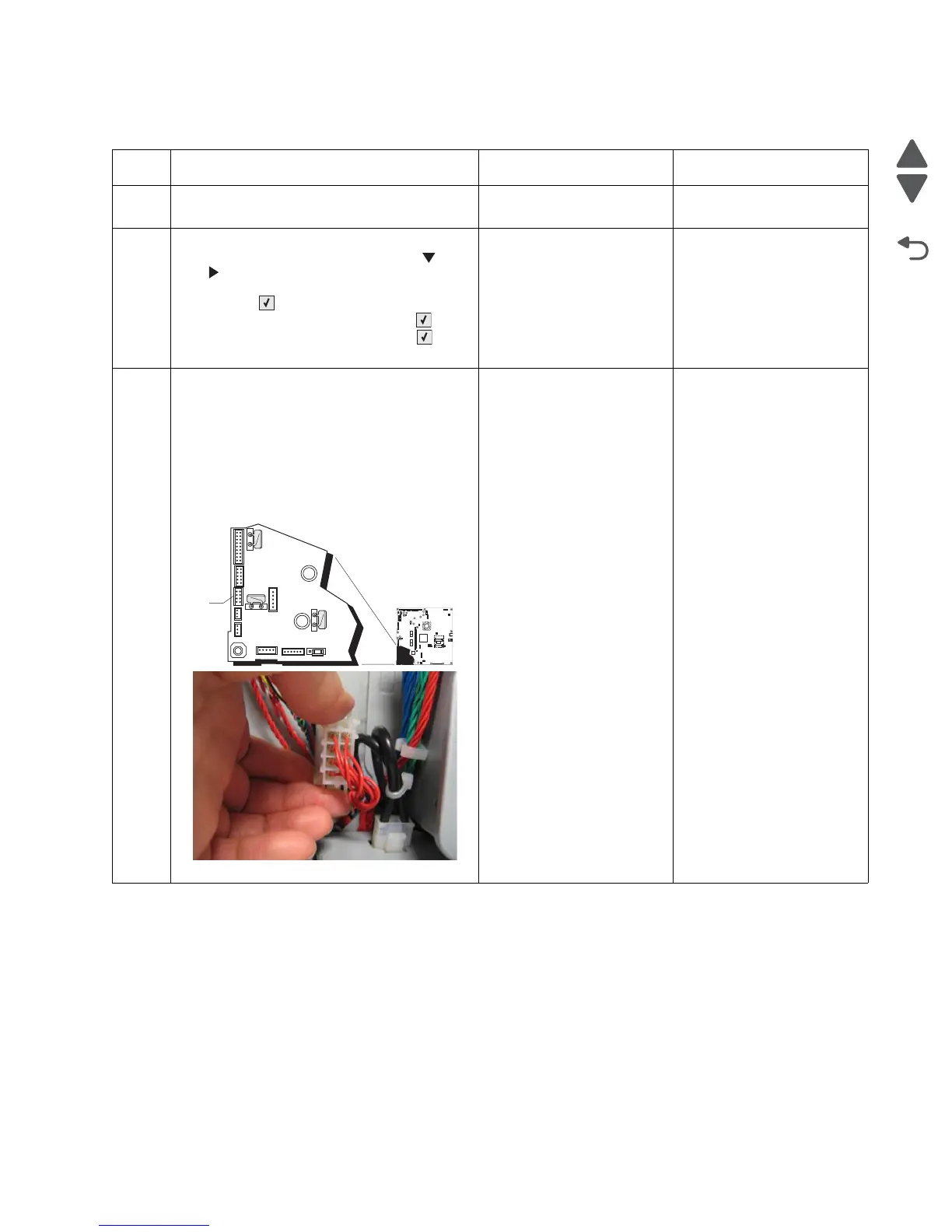

245.05—Paper Jam service check
Step Questions / actions Yes No
1 Has paper been fed from an input option
before?
Go to step 5. Go to step 2.
2
1. Bring the printer up in Diagnostics Menu
(turn off the printer, press and hold and
. and turn on the printer).
2. Select PRINT TESTS, and press
Select ().
3. Select Tray 5, and press Select ().
4. Select Single, and press Select ().
Did the page feed correctly?
Replace the option cable.
See “Option cable
removal” on page 4-125.
Go to step 3.
3
1. Turn the printer off.
2. Remove the rear frame cover. See “Rear
frame cover removal” on page 4-33.
3. Remove the right cover. See “Right
cover removal” on page 4-37.
4. Check the connector at JOPT1 on the
system board for proper connection, the
cable for pinch points, and the cable or
connector for any other damage.
Is the cable damaged?
Replace the option cable.
See “Option cable
removal” on page 4-125.
Go to step 4.
1
JSB1
JBIN1
JFAN1
JFUSER1
JBOR1
JHVPS1
JMIRR1
JBLW1
JCVR1
JLVPS2
JCARTP1
JCARTS1
JCARTS2
JCARTP2
JDVR1
JTPS1
JOPT1
JFDS1
JINT1JINT1
JFDPCK1JTRAY1JSEC1
JDX1
JT12
J5
JDIMM1
JOPP1
JT1
JUSB1
JBOOT1
JFMUSB1
J49
JTWF1
JTDBUG1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
JTLBT1JTLBT1
JPH1
F5
F6
F7
F9
F10
F12
F13
F14
1
1
J10
1
1
A
