Cooling fan removal

1. Remove the rear upper cover. See “Rear upper cover removal” on page 4-36.

2. Remove the rear frame cover. See “Rear frame cover removal” on page 4-33.

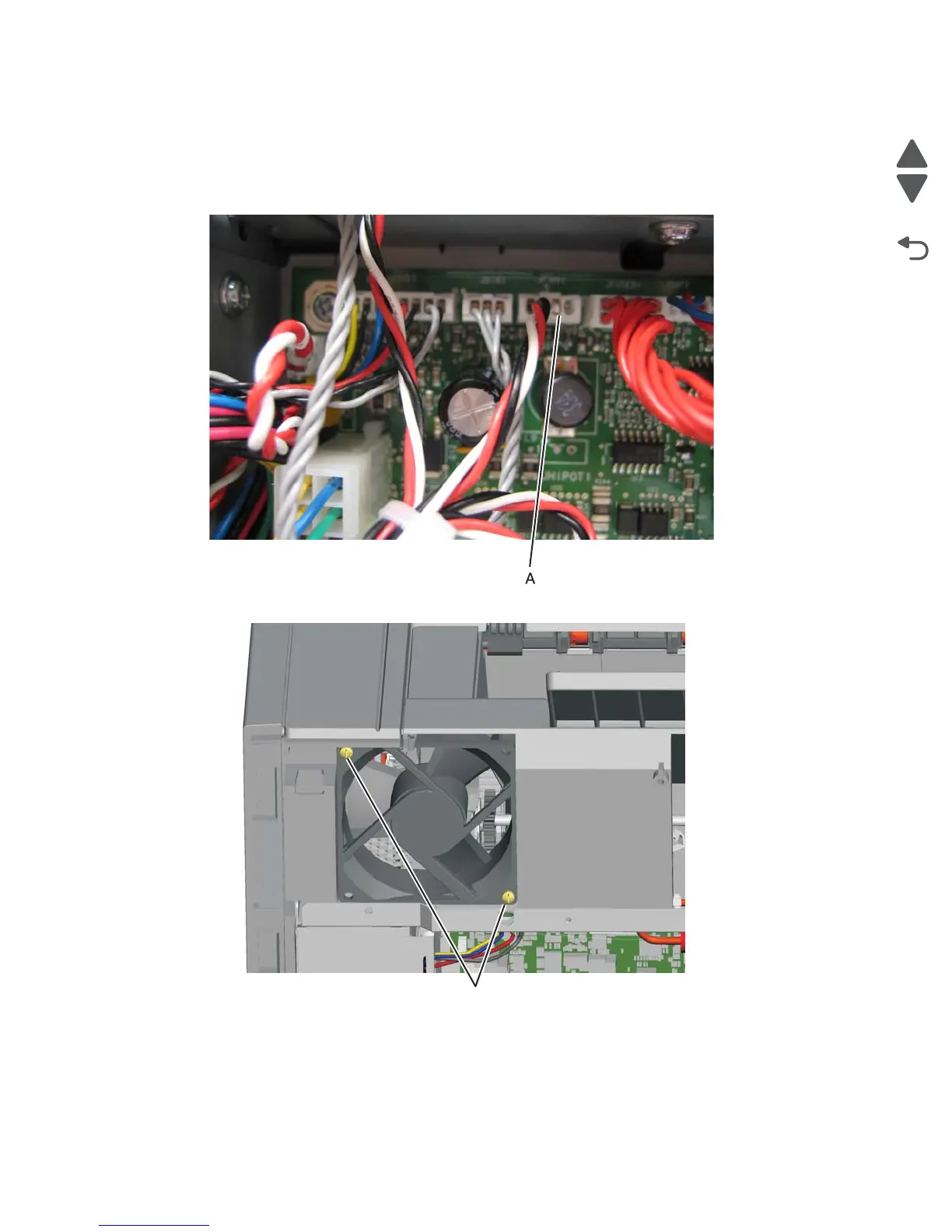

3. Disconnect JFAN1 (A).

4. Remove the two screws (B).

5. Remove the cooling fan.
