4-162 Service Manual
5026
Top cover camshaft assembly removal
See “Top cover camshaft assembly” on page 7-12 for the part number.
1. Open the front cover access door cover.
2. Open the top access cover.

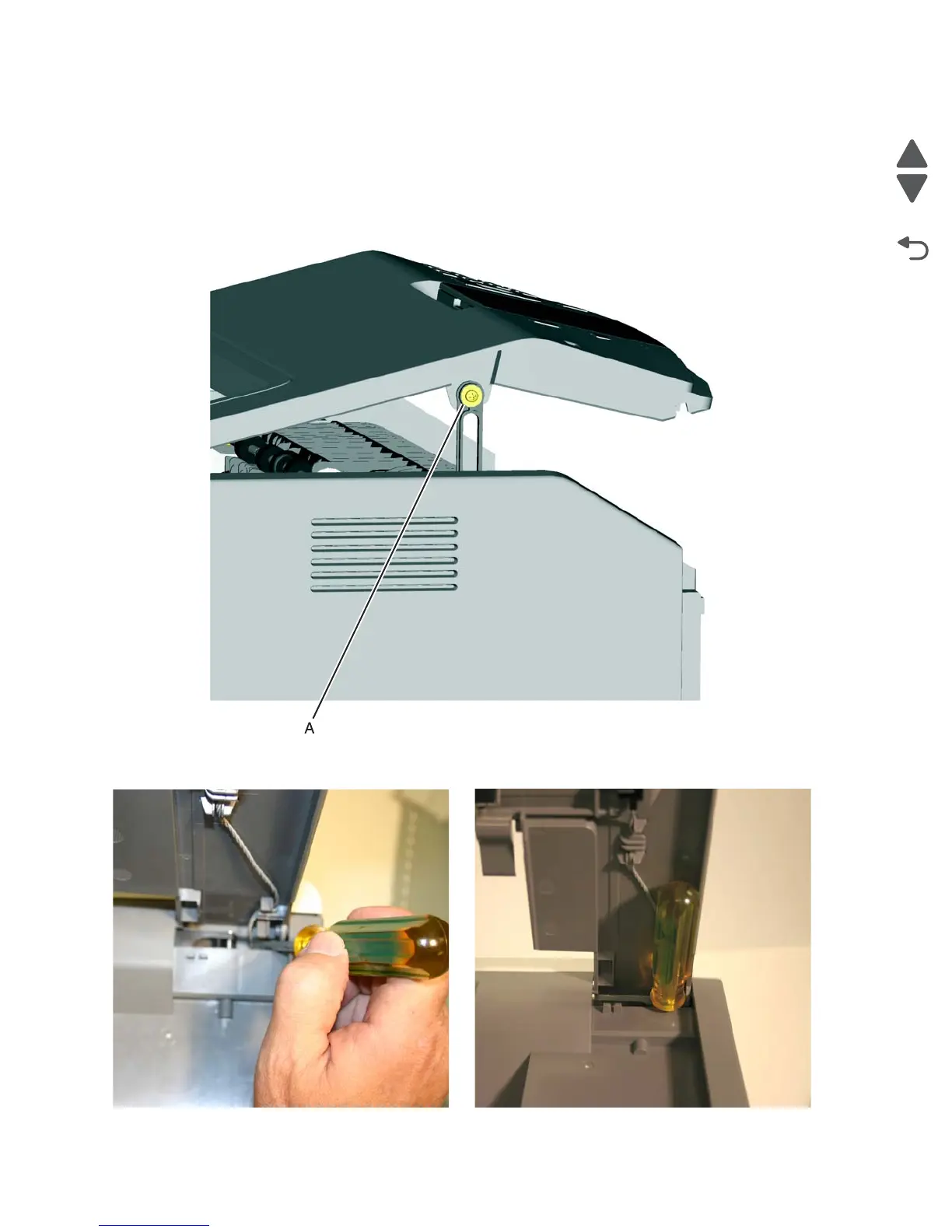

3. Remove the two screws (A) from the links on either side, and disengage the links.
4. Rotate the top access cover back, and place a screwdriver in the cable hole in the frame to hold the cover
in place.
