Lexmark C734dn - Toner Level Sensor Removal

To Next Page

To Previous Page

4-160 Service Manual

5026

Go Back

Toner level sensor removal

See “Toner level sensor” on page 7-11 for the part number.

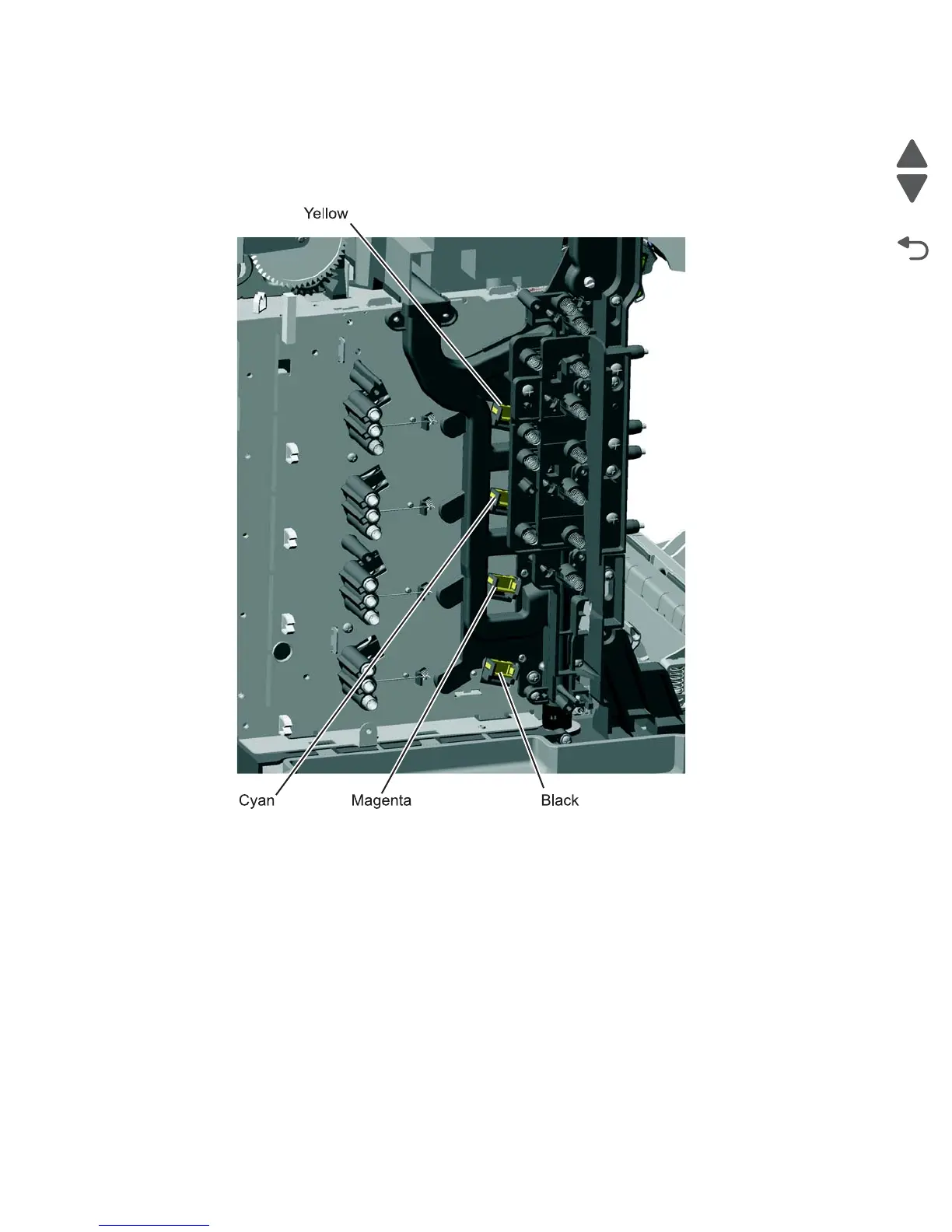

Note the locations of the toner sensors.

1. Remove the HVPS. See “High-voltage power supply (HVPS) removal” on page 4-108.

2. For the upper two sensors: These sensors are more difficult to reach because the toner is difficult to

reach:
