2-54 Service Manual
5026

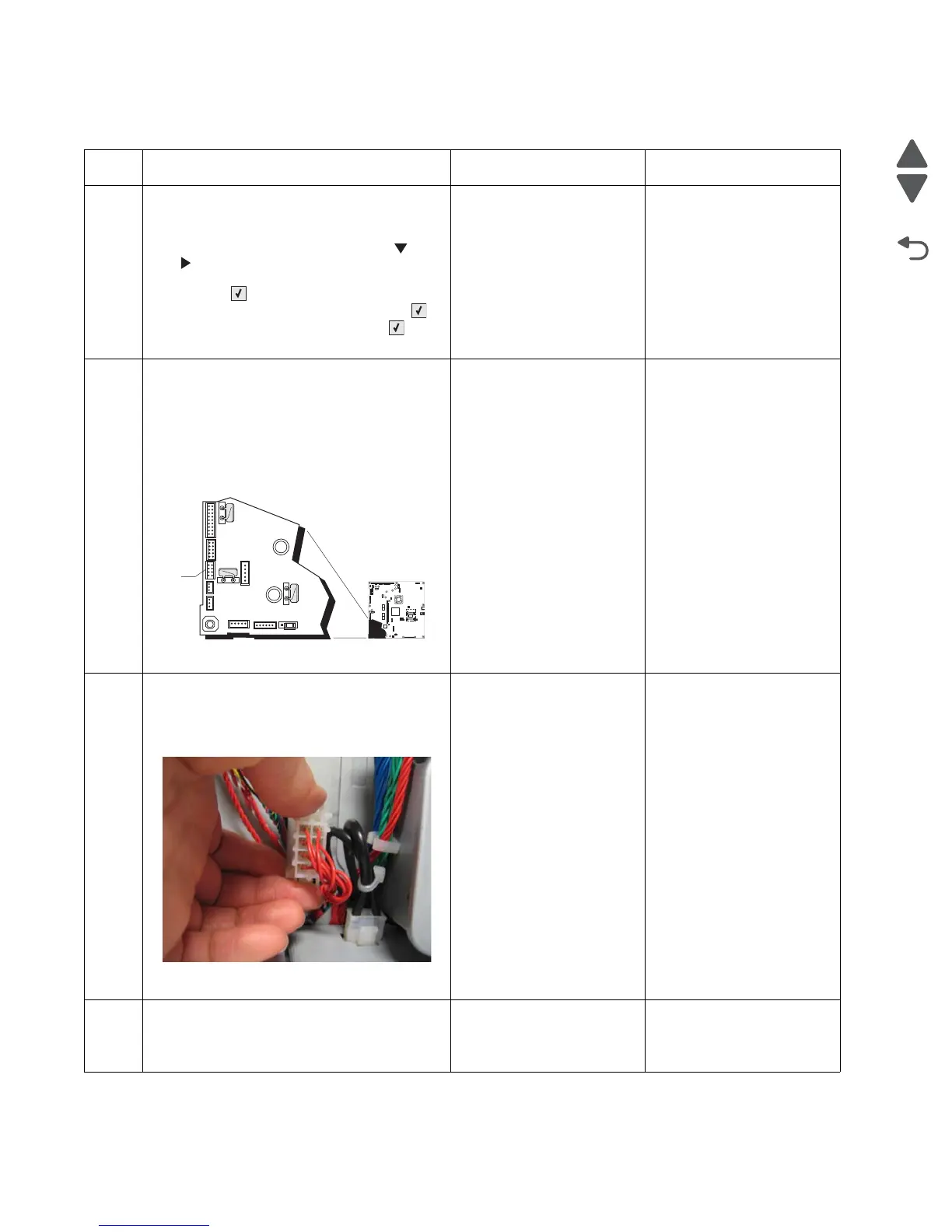

160.xx, 161.xx—Motor Error (option tray 2) service check
Step Questions / actions Yes No
1 1. Turn the printer off.
2. Reseat option tray 2.
3. Bring the printer up in Diagnostics Menu
(turn off the printer, press and hold and
. and turn on the printer).
4. Select PRINT TESTS, and press
Select ().
5. Select the Tray 2, and press Select ().
6. Select Single, and press Select ().
Did the page print?
Problem resolved. Go to step 2.
2
1. Turn the printer off.
2. Remove the rear frame cover. See “Rear
frame cover removal” on page 4-33.
3. Check the option cable in connector
JOPT1 (A) on the system board for proper
connection, for cable pinch points, and for
any other damage to the cable or
connector
Is the cable damaged?
Replace the option cable.
See “Option cable
removal” on page 4-125.
Go to step 3.
3
Remove the right cover. See “Right cover
removal” on page 4-37.
Check the option cable for pinch points and
any damage.
Is the cable damaged?
Replace the option cable.
See “Option cable
removal” on page 4-125.
Go to step 4.
4
Is the option tray 2 the high-capacity input tray
(2,000-sheet feeder)?
Replace the HCIT top plate
assembly. See “Top plate
assembly removal” on
page 4-204.
Replace the option tray 2
assembly.
1
JSB1
JBIN1
JFAN1
JFUSER1
JBOR1
JHVPS1
JMIRR1
JBLW1
JCVR1
JLVPS2
JCARTP1
JCARTS1
JCARTS2
JCARTP2
JDVR1
JTPS1
JOPT1
JFDS1
JINT1
JFDPCK1JTRAY1JSEC1
JDX1
JT12
J5
JDIMM1
JOPP1
JT1
JUSB1
JBOOT1
JFMUSB1
J49
JTWF1
JTDBUG1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
JTLBT1
JPH1
F5
F6
F7
F9
F10
F12
F13
F14
1
1
J10
1
1
A
