HCIT front tray cover removal
Note: When removing the high-capacity input tray (HCIT) front tray cover, it is not necessary to remove the
HCIT media tray assembly from the base machine and the caster base.
1. Remove the HCIT media tray assembly. See “HCIT media tray assembly removal” on page 4-191.

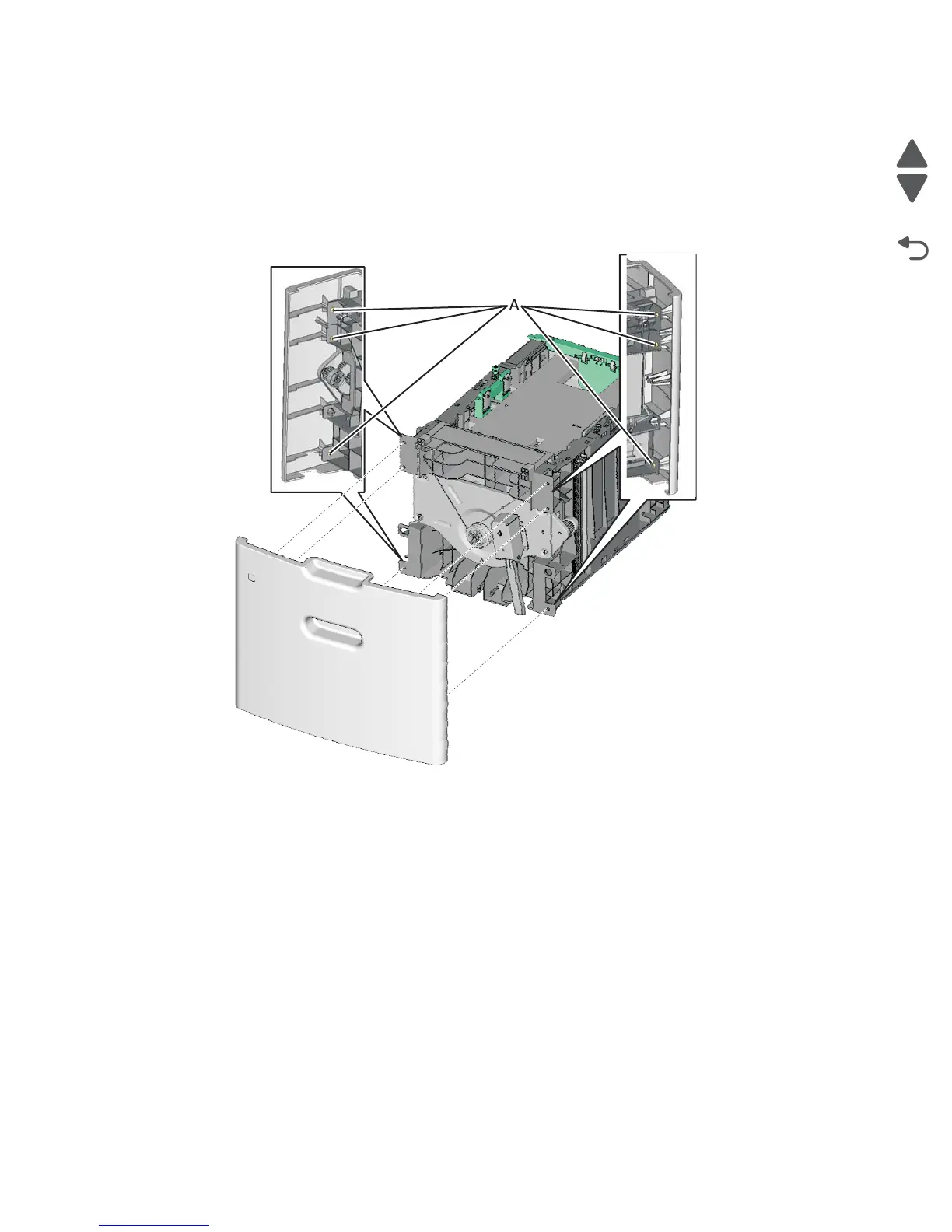

2. Remove the six screws (A) securing the HCIT front tray cover to the media tray assembly.
3. Remove the HCIT front tray cover.
