Hard drive assembly removal

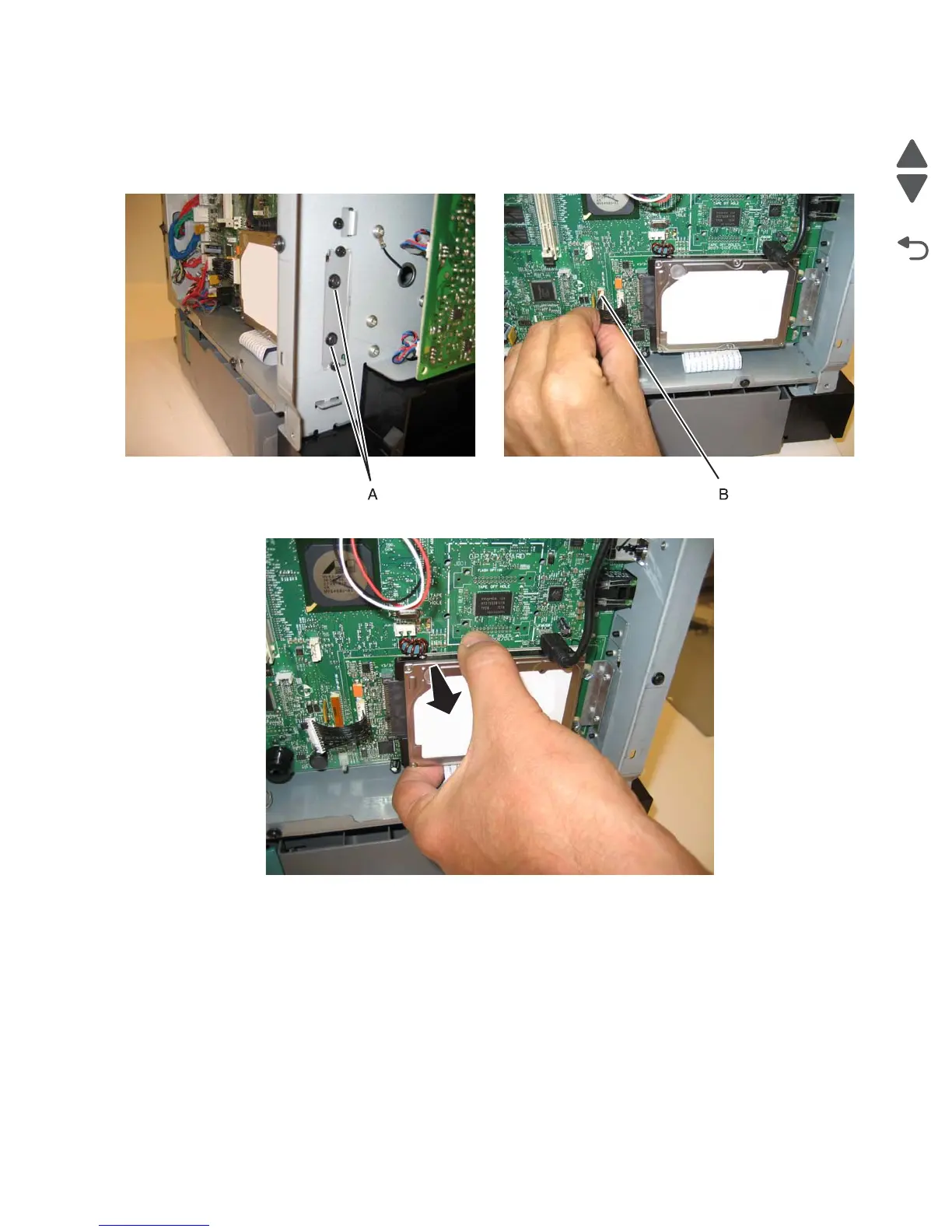

1. Remove the two screws (A), and squeeze the connector to disconnect the hard disk from the system

board (B).

2. Pull the hard disk straight out to pop the hard drive standoffs free of the system board.
