Right bellcrank assembly removal

See “Right bellcrank assembly, with spring” on page 7-5 for the part number.

1. Remove the right cover. See “Right cover removal” on page 4-37.

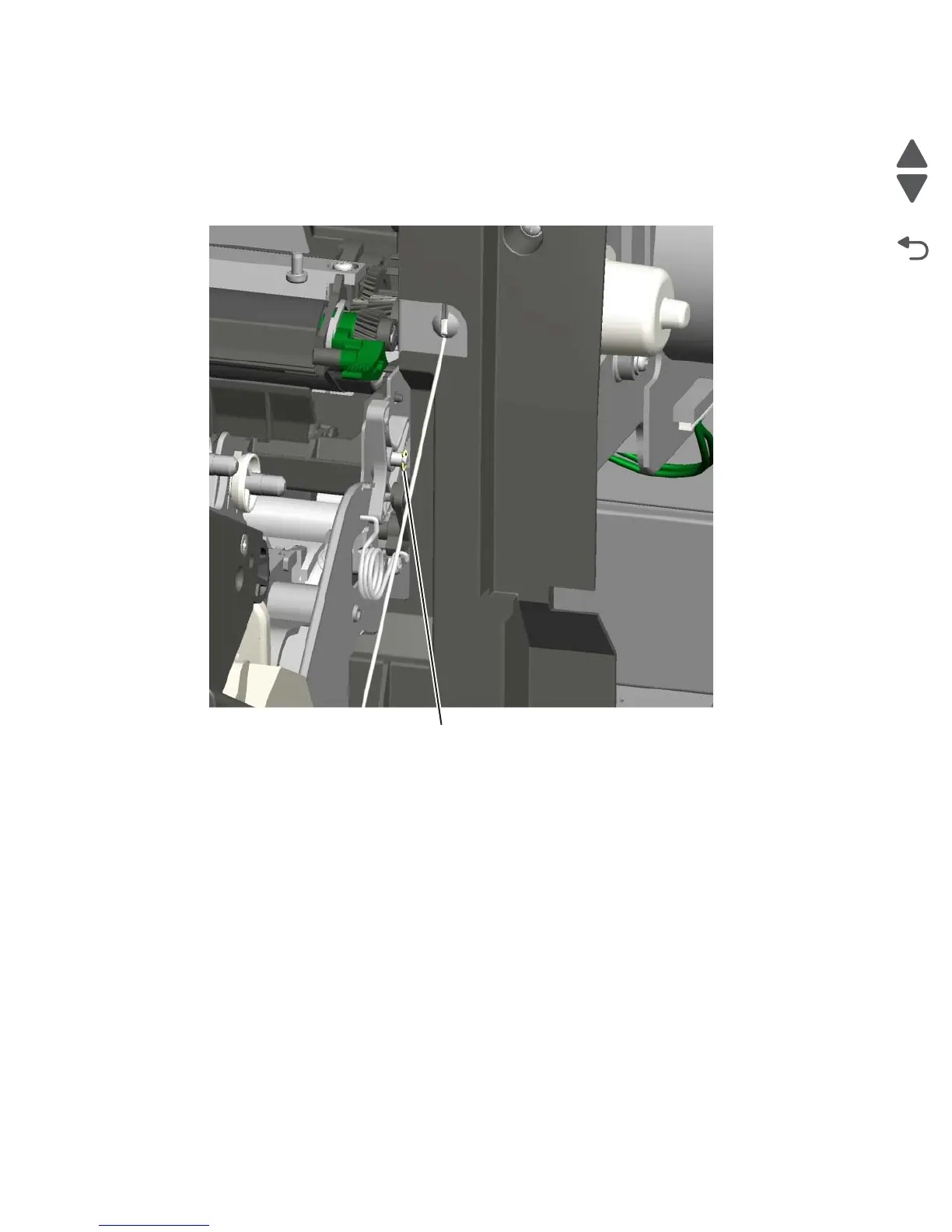

2. Remove the C-clip (A).

3. Remove the right bellcrank assembly.
