HCIT pick arm roll removal
1. Remove the high-capacity input tray (HCIT) media tray assembly. See “HCIT media tray assembly
removal” on page 4-191.

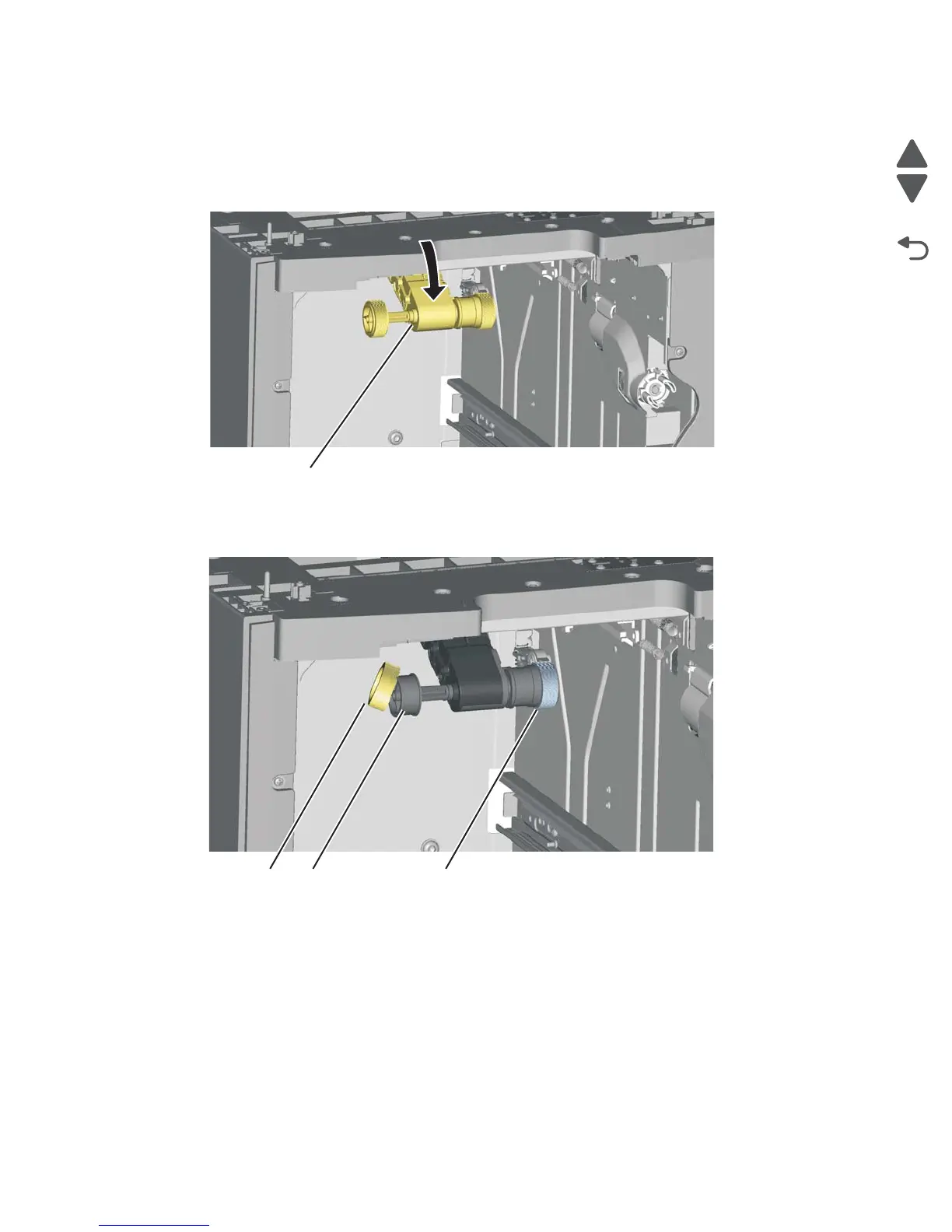

2. Pull the autocompensator pick arm (A) down.
3. Remove the pick arm roll (B) from the pick roll assembly (C).
4. Repeat for the other pick arm roll (D).
Note: Always replace the pick arm rolls as pairs.
Installation notes:
See “Pick arm roll removal and replacement” on page 4-133 to make sure the pick arm roll is oriented
correctly.
