Repair information 4-199

5026

Go Back

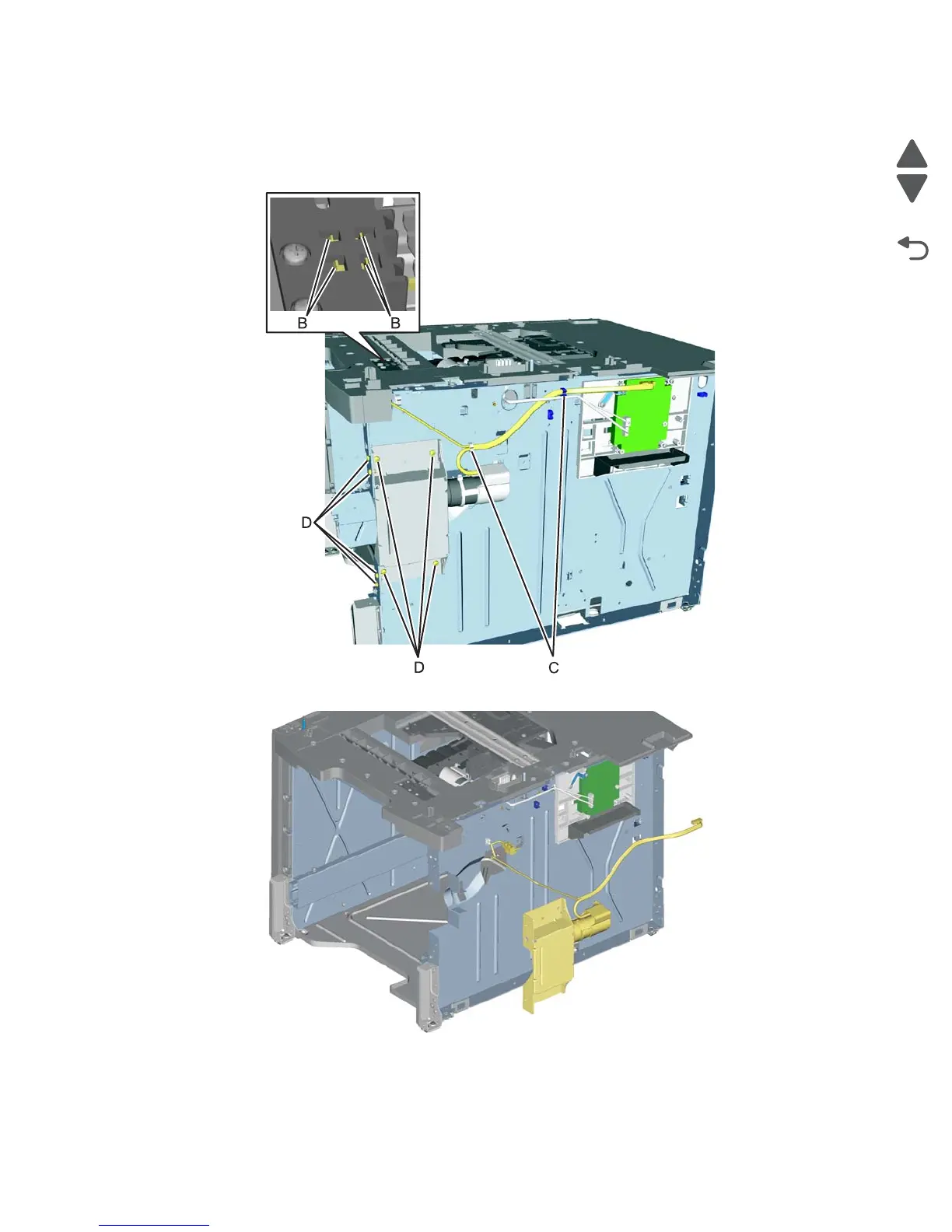

3. Release the hooks (B) securing the pass thru sensor to the top plate assembly.

4. Remove the pass thru sensor from the top plate assembly.

5. Release the harness from the clamps (C).

6. Remove the eight screws (D) securing the elevator motor with sensor to the side frame.

7. Remove the elevator motor with sensor.
