3-10 Service Manual
5026

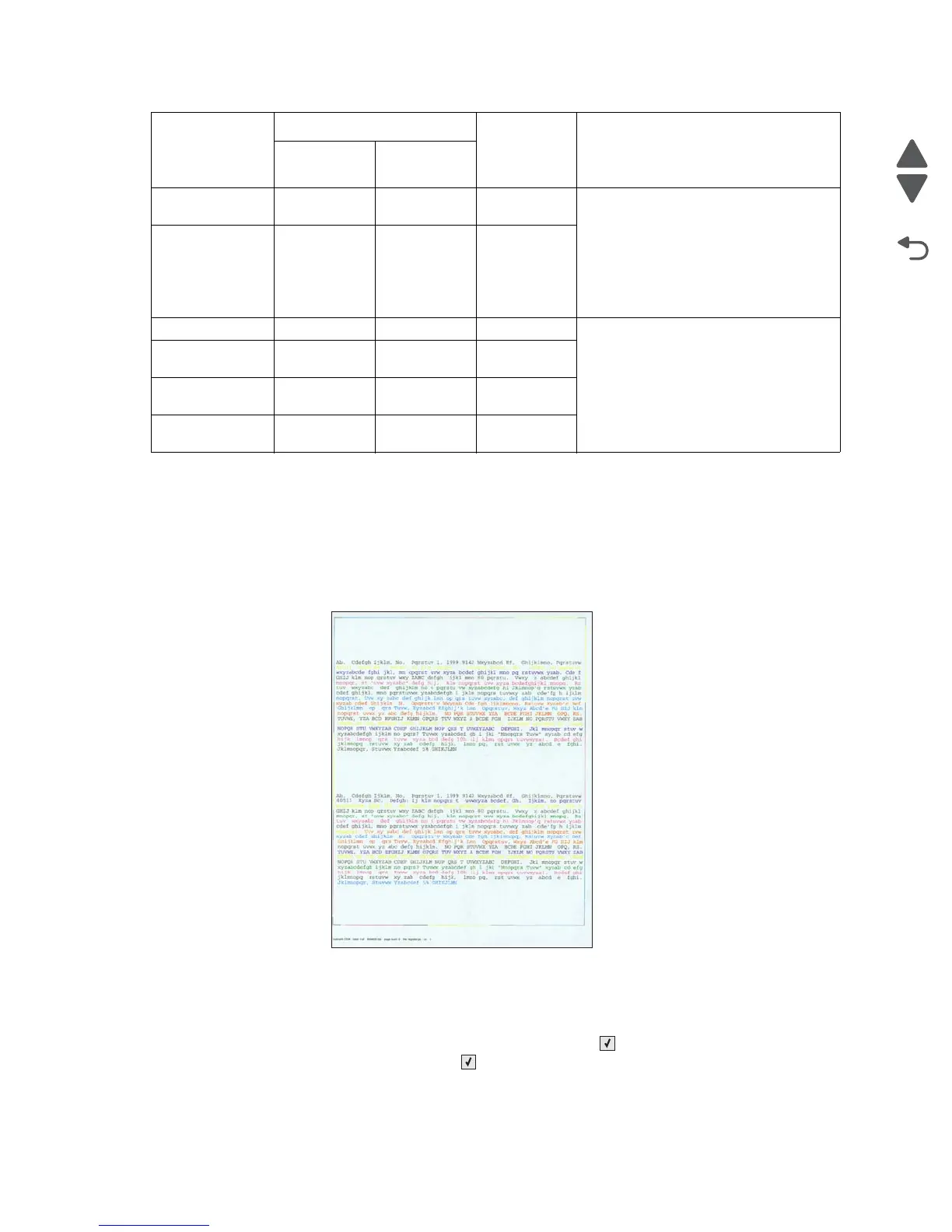

Print Tests
Input source tests
The purpose of the diagnostic Print Tests is to verify that the printer can print on media from each of the installed
input options. The contents of the Print Test Page varies depending on the media installed in the selected input
source.
Check each Test Page from each source to assist in print quality and paper feed problems.
To run the Print Test Page:
1. Select PRINT TESTS from the DIAGNOSTICS, and press Select ().
2. Select the media source, and press Select ().
Tray 1
Tray 2 (if installed)
Tray 3 (if installed)
CAM N/A Closed Forward,
Reverse
If the cam or COD are at the farthest
extent forward or backward, selecting
this value does not show a result. If this
happens, select the other value. For
example, if you select Forward, and
nothing happens, select Reverse. This
time you should get results.
COD stands for Color on Demand.
COD N/A Closed Forward,
Reverse
DUPLEX N/A Closed Forward Remove all paper from the input source
tray to avoid paper jams while
performing this test.
Option Motors—
Tray 1 Feed
N/A N/A Single,
Continuous
Option Motors—
Tray 1 Pick
N/A N/A Single,
Continuous
Option Motors—
Elevator
Not applicable Not applicable Forward,
Reverse
Motor test
Setup requirements
Values in
menu
Notes
Top cover
position
Lower door
position
