Lexmark C734dn - High-Voltage Power Supply (HVPS) Removal

To Next Page

To Previous Page

4-108 Service Manual

5026

Go Back

High-voltage power supply (HVPS) removal

See “High-voltage power supply” on page 7-11 for the part number.

1. Remove the left cover. See “Left cover removal” on page 4-21.

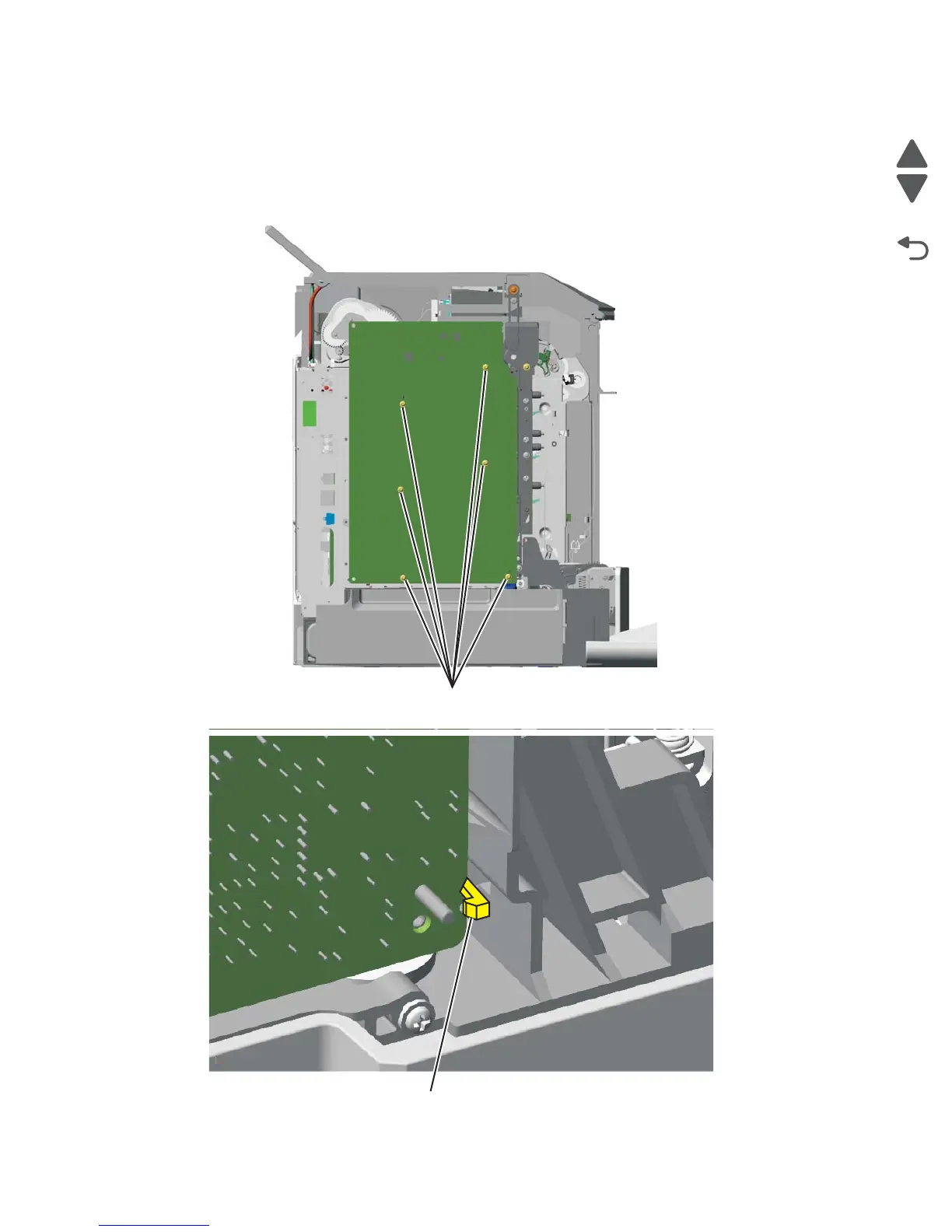

2. Remove the six mounting screws (A).

3. Release the locking tab (B) from the front, lower corner of the HVPS.
