Repair information 4-115

5026

Go Back

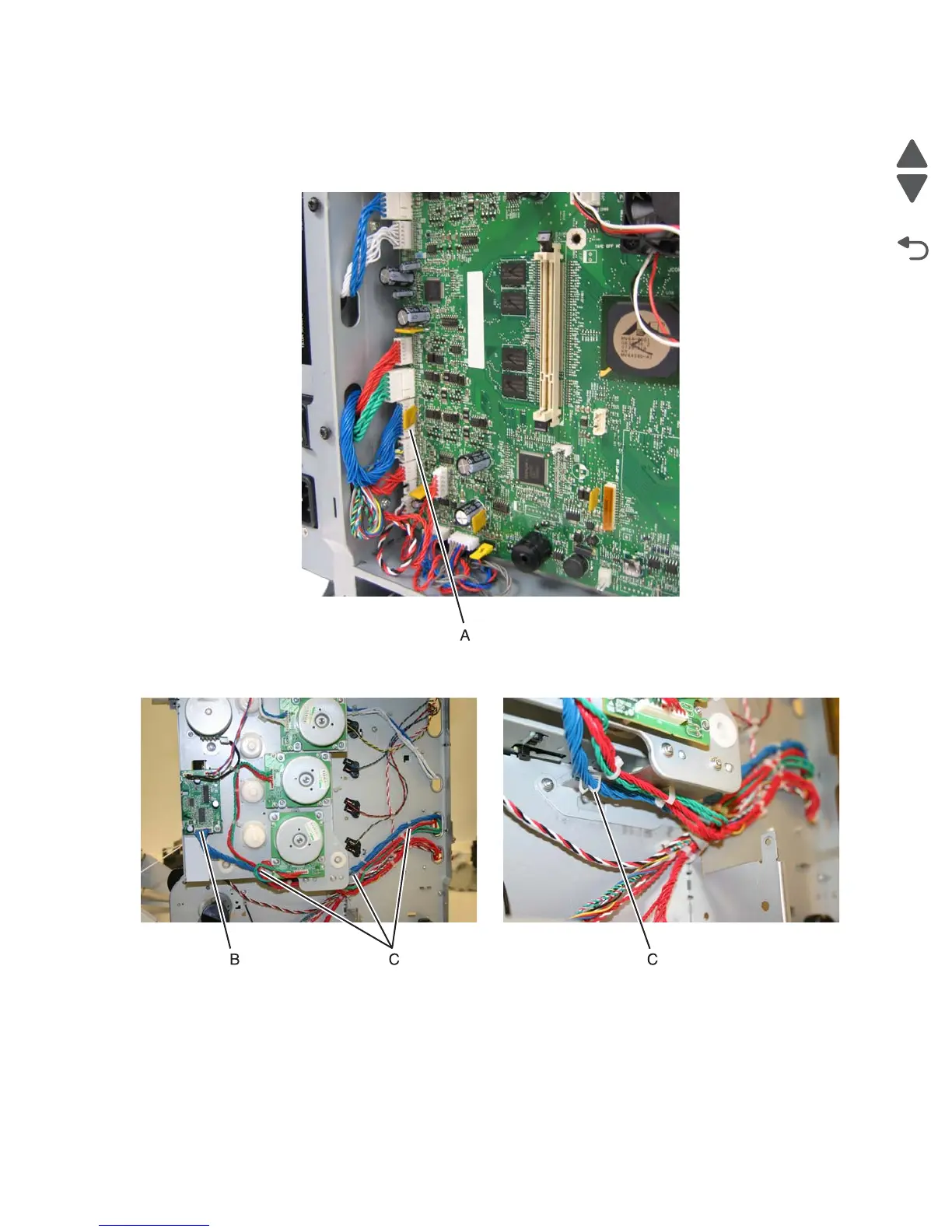

Motor driver cable removal

1. Remove the LVPS. See “Low-voltage power supply (LVPS) removal” on page 4-112.

2. Disconnect the connector in JDVR1 (A) on the system board.

3. Disconnect the connector on the motor driver card (B).

4. Remove the cable from the cable from the four cable retainers (C).

Installation notes

Note the routing of the cable and the cable retainers.
