HCIT right cover removal
1. Carefully remove the printer or multifunction printer from the high-capacity input tray (HCIT) and remove
the HCIT from the caster base.
2. Remove the HCIT media tray assembly. See “HCIT media tray assembly removal” on page 4-191.
3. Remove the HCIT rear cover. See “HCIT rear cover removal” on page 4-193.

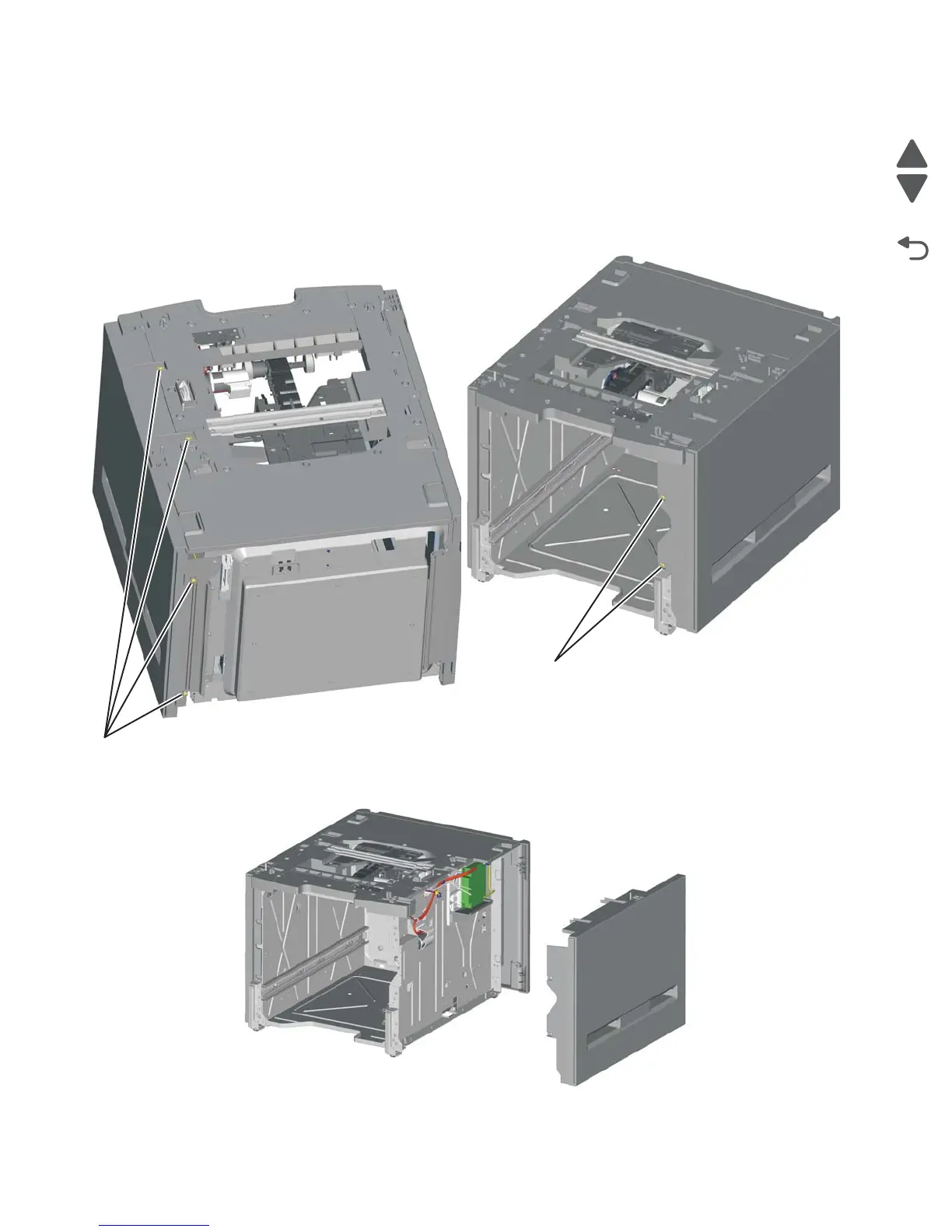

4. Remove the six screws (A) securing the HCIT right cover to the drawer.
5. Remove the HCIT right cover.
A
A
