Lexmark C734dn - Multipurpose Feeder (Mpf);Duplex Motor Cable Removal

To Next Page

To Previous Page

Repair information 4-121

5026

Go Back

Multipurpose feeder (MPF)/duplex motor cable removal

1. Remove the multipurpose feeder/duplex motor. See “Multipurpose feeder (MPF)/duplex motor

assembly removal” on page 4-118.

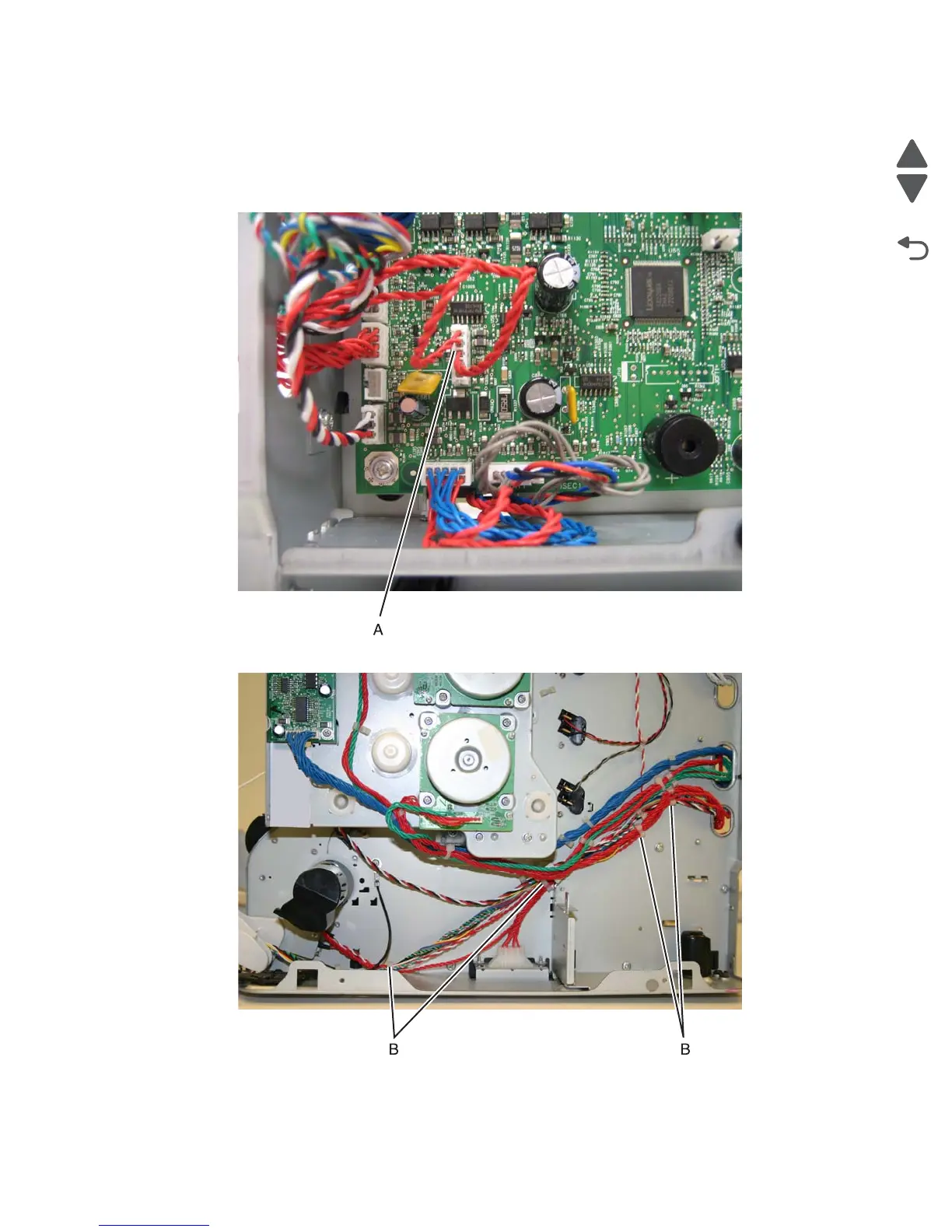

2. Disconnect the connector from JDX1 (A) on the system board.

3. Remove the cable from the cable retainers (B).
