Lexmark C734dn - Rear Left Cover Removal

To Next Page

To Previous Page

4-34 Service Manual

5026

Go Back

Rear left cover removal

1. Remove the left cover. See “Left cover removal” on page 4-21.

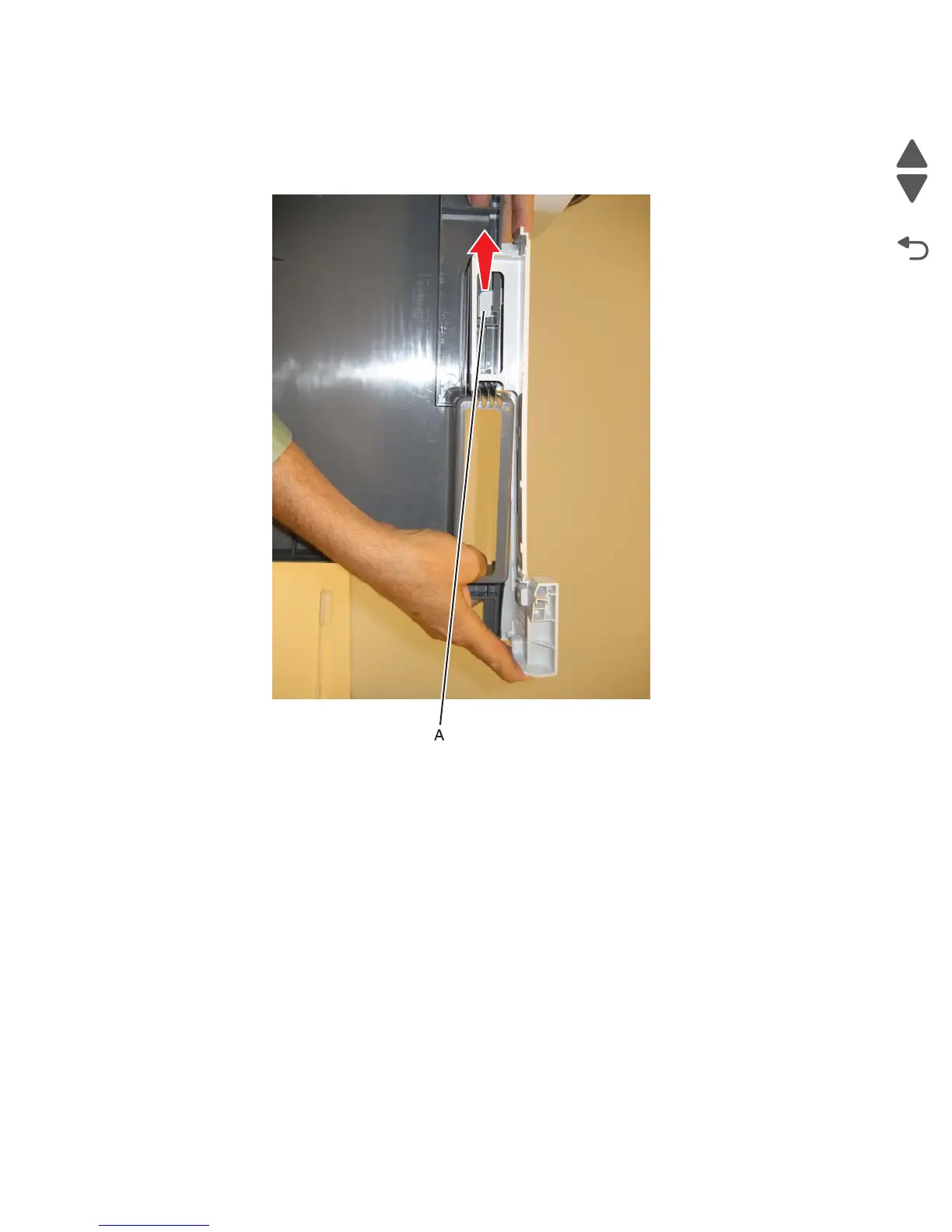

2. Separate the left cover and rear left cover by sliding the left rear cover as shown to disengage the latch (A).
