Lexmark C734dn - Top Cover Assembly Removal

Repair information 4-43
5026
Go Back
Previous
Next
Top cover assembly removal
1. Remove the LVPS. See “Low-voltage power supply (LVPS) removal” on page 4-112.
2. Remove the top access cover assembly. See “Top access cover assembly removal” on page 4-40.

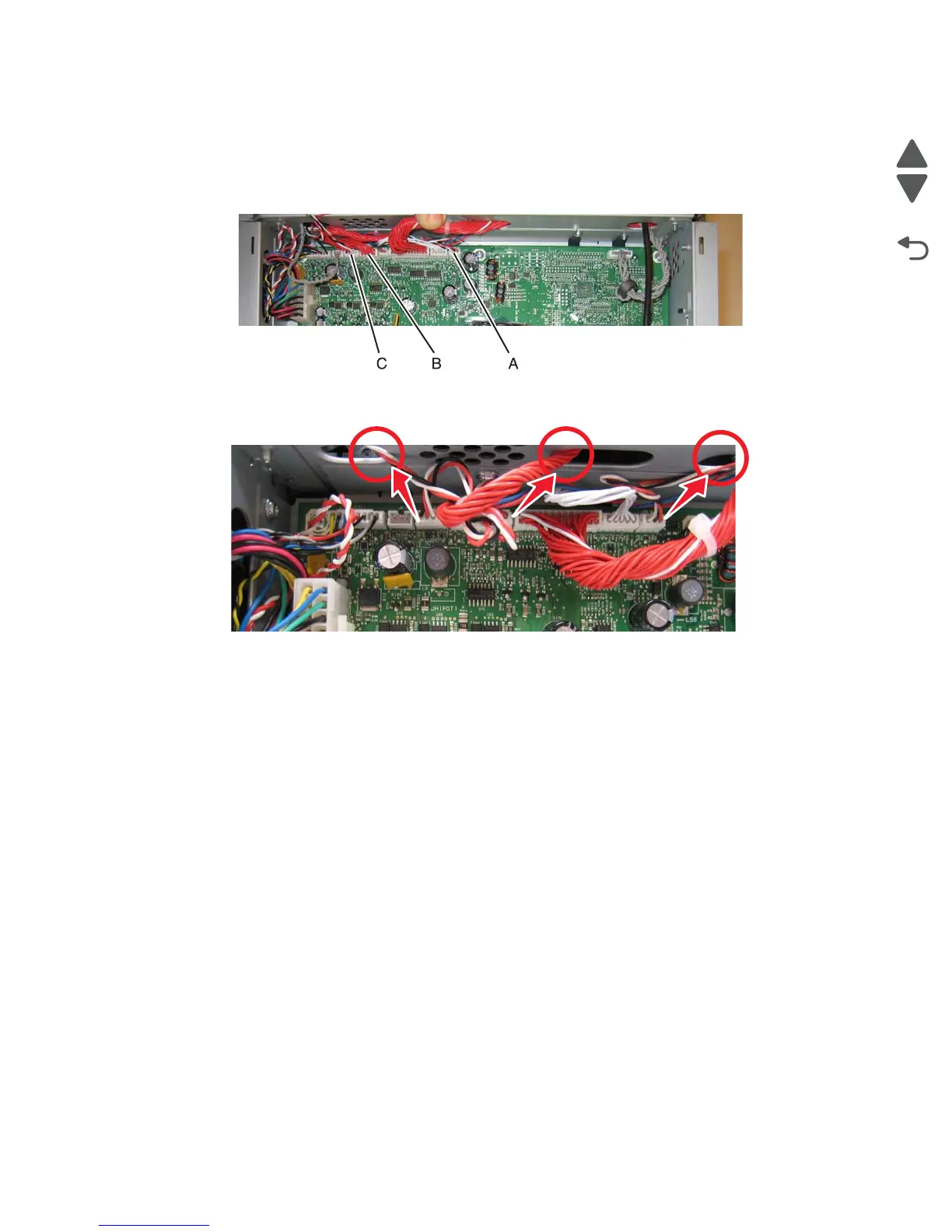

3. Disconnect the connectors in JBLW1 (A), JFUSER1 (B), JFAN1 (C) on the system board.
4. Pull the cables through the openings.
Note: Be sure to observe the routing for the cables.
