4-42 Service Manual
5026

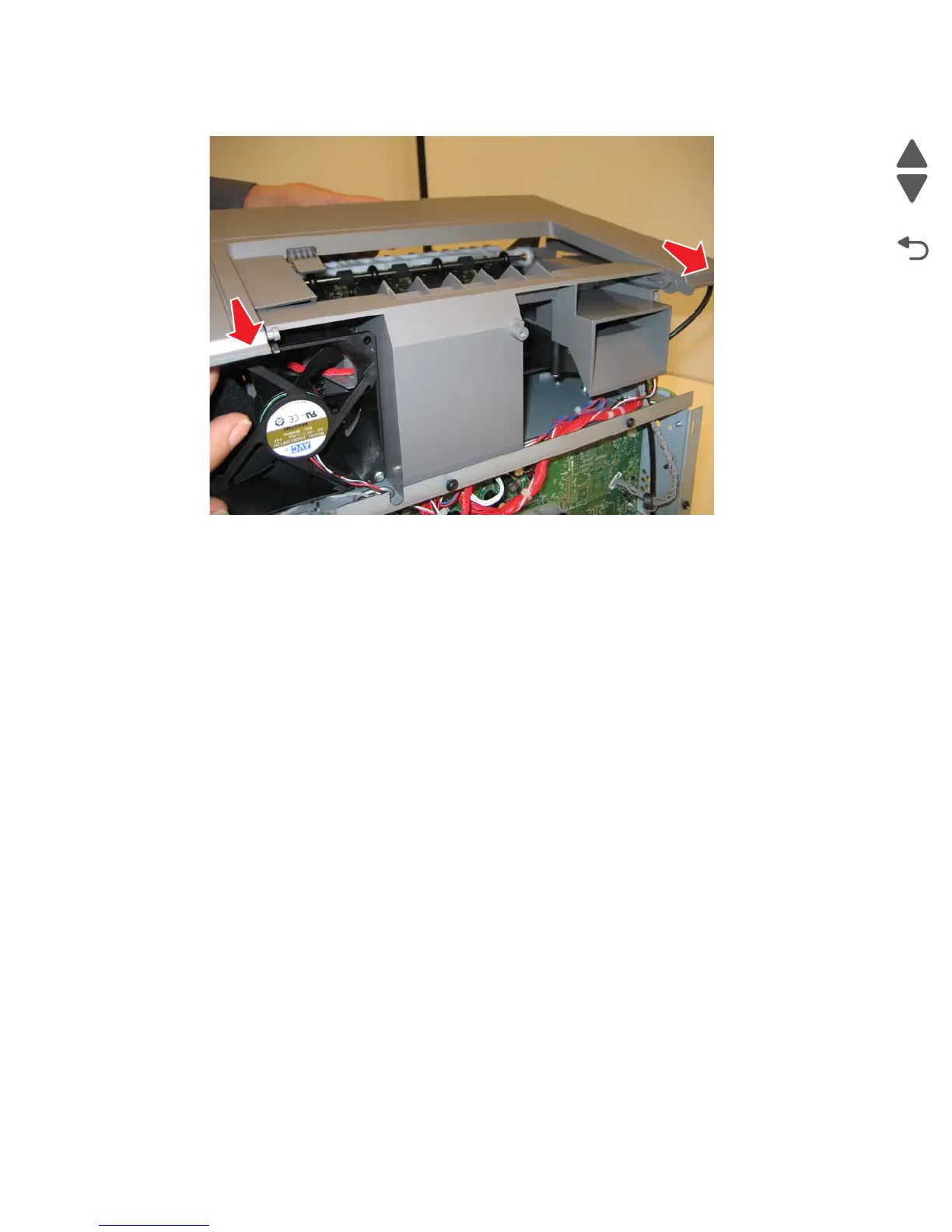

7. Slide the top access cover to the rear, and remove.
Note: If you are removing the top access cover assembly to access another FRU, then leave the operator panel
bezel attached, and you are done. If you are replacing the top access cover assembly FRU, then continue with
the next step to disconnect the separate operator panel bezel FRU.
8. Remove the operator panel bezel. See “Operator panel bezel removal” on page 4-28.
To Next Page
