Diagnostic information 2-99
5026

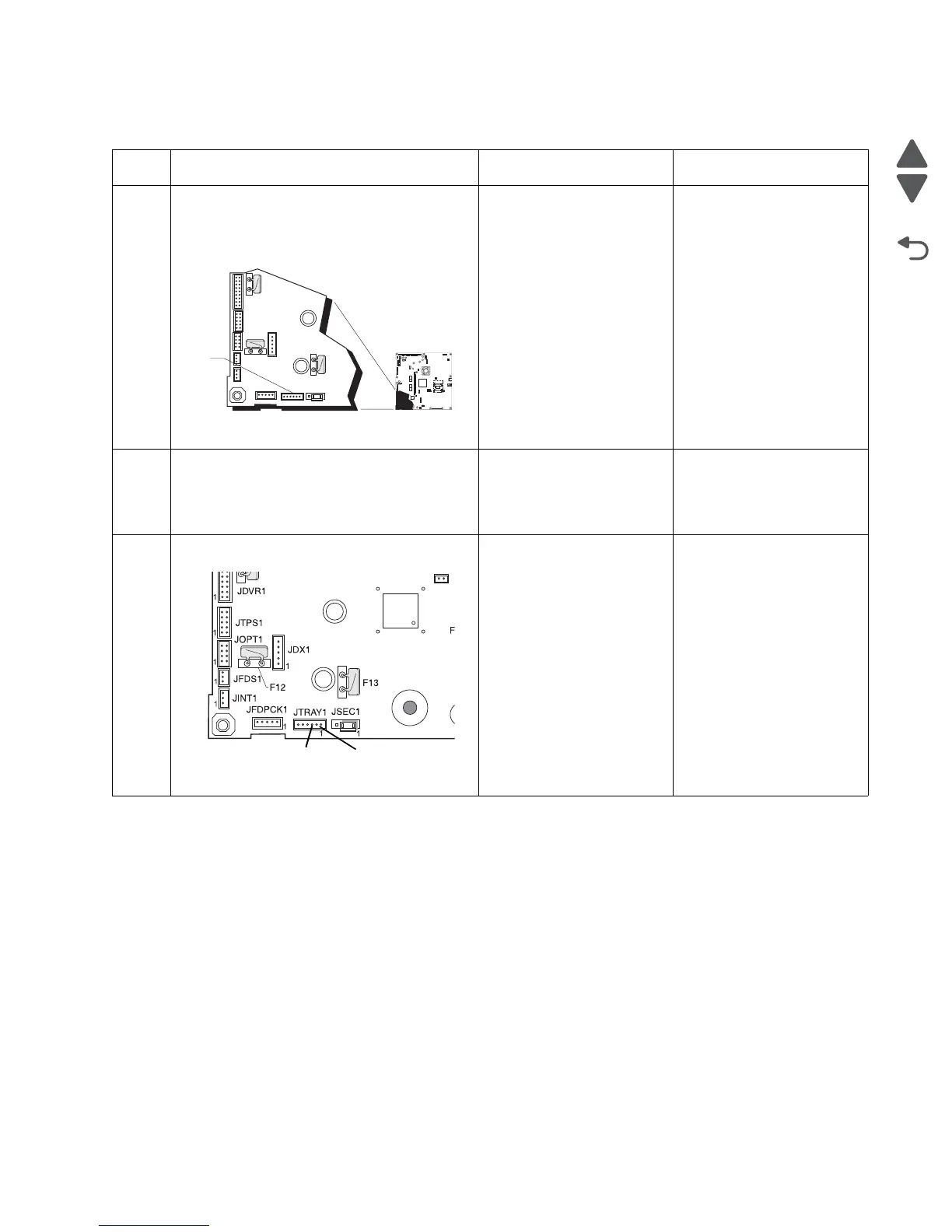

920.07—POST (power-on self test) error service check
Step Questions / actions Yes No
1 Turn the printer off, and then remove the rear
frame cover. See “Rear frame cover
removal” on page 4-33.
Reseat the cable in connector JTRAY1.
Does the error clear?
Problem resolved. Go to step 2.
2
Check the cable in connector JTRAY1 for
pinch points and the cable or connector for
any other damage.
Is the cable damaged?
Replace the paper pick
mechanism. See “Paper
pick mechanism
assembly removal” on
page 4-127.
Go to step 3.
3
POR the printer. Place a voltmeter between
JTRAY1, pin 4, and ground (pin 1).
Does the meter read 5 V dc?
Go to step 4. Replace the system board.
See “System board
removal” on page 4-153.
1
JSB1
JBIN1
JFAN1
JFUSER1JFUSER1
JBOR1
JHVPS1
JMIRR1
JBLW1
JCVR1
JLVPS2
JCARTP1
JCARTS1
JCARTS2
JCARTP2
JDVR1
JTPS1
JOPT1JOPT1
JFDS1
JINT1
JFDPCK1JTRAY1JSEC1
JDX1
JT12
J5
JDIMM1
JOPP1
JT1
JUSB1
JBOOT1
JFMUSB1
J49
JTWF1
JTDBUG1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
JTLBT1
JPH1
F5
F6
F7
F9
F10
F12
F13
F14
1
1
J10
1
1
A
