2-100 Service Manual
5026
4
1. Disconnect the cable in JTRAY1.
2. Connect the cable from the new paper
pick mechanism.
3. Bring the printer up in Diagnostic menu
(turn off the printer, press and hold and
. and turn on the printer).
4. Select SENSOR TESTS, and press
Select ().
5. Select Dynamic Sensors, and press
Select ().
6. Select Narrow Media, and press
Select ().

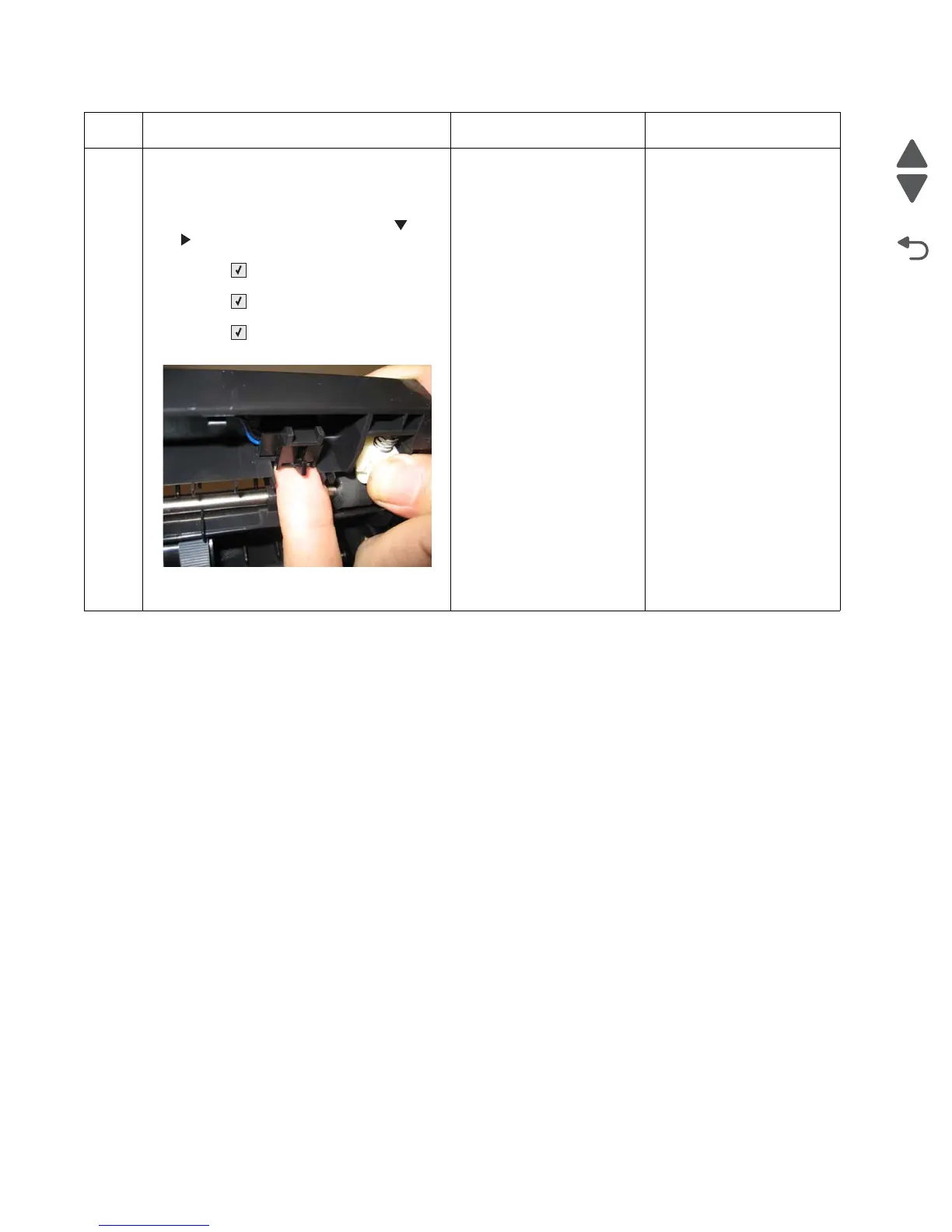

7. Activate the narrow media sensor.
Did the narrow media sensor change from
Closed to Open?
Remove the paper pick
mechanism. See “Paper
pick mechanism
assembly removal” on
page 4-127.
Replace the system board.
See “System board
removal” on page 4-153.
Step Questions / actions Yes No
