Note: When replacing either the front or rear cartridge guide wheel, be careful to not let the non-
defective cartridge guide wheel fall off.
Installation note: Inspect carefully if the cartridge guide wheel is seated properly on the cartridge
guide before reinstalling the screw on the cartridge guide.
Cartridge cooling fan removal
1. Remove the top cover. See “Top cover assembly removal” on page 4-43.

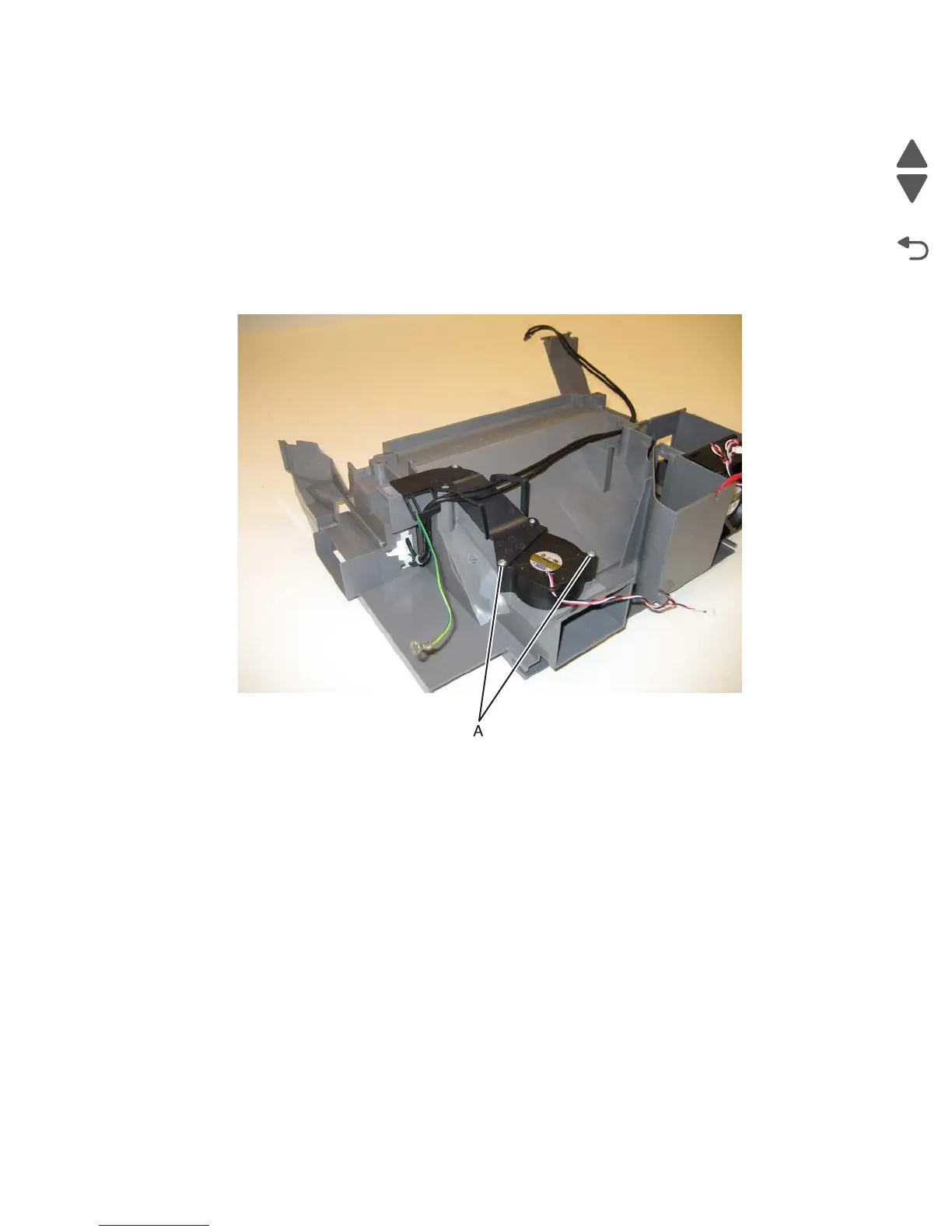

2. Turn the top cover over, and remove the two screws (A).
3. Remove the cartridge cooling fan.
