USB connector cable removal (front panel)

1. Remove the top access door cover assembly. See “Top access cover assembly removal” on

page 4-40.

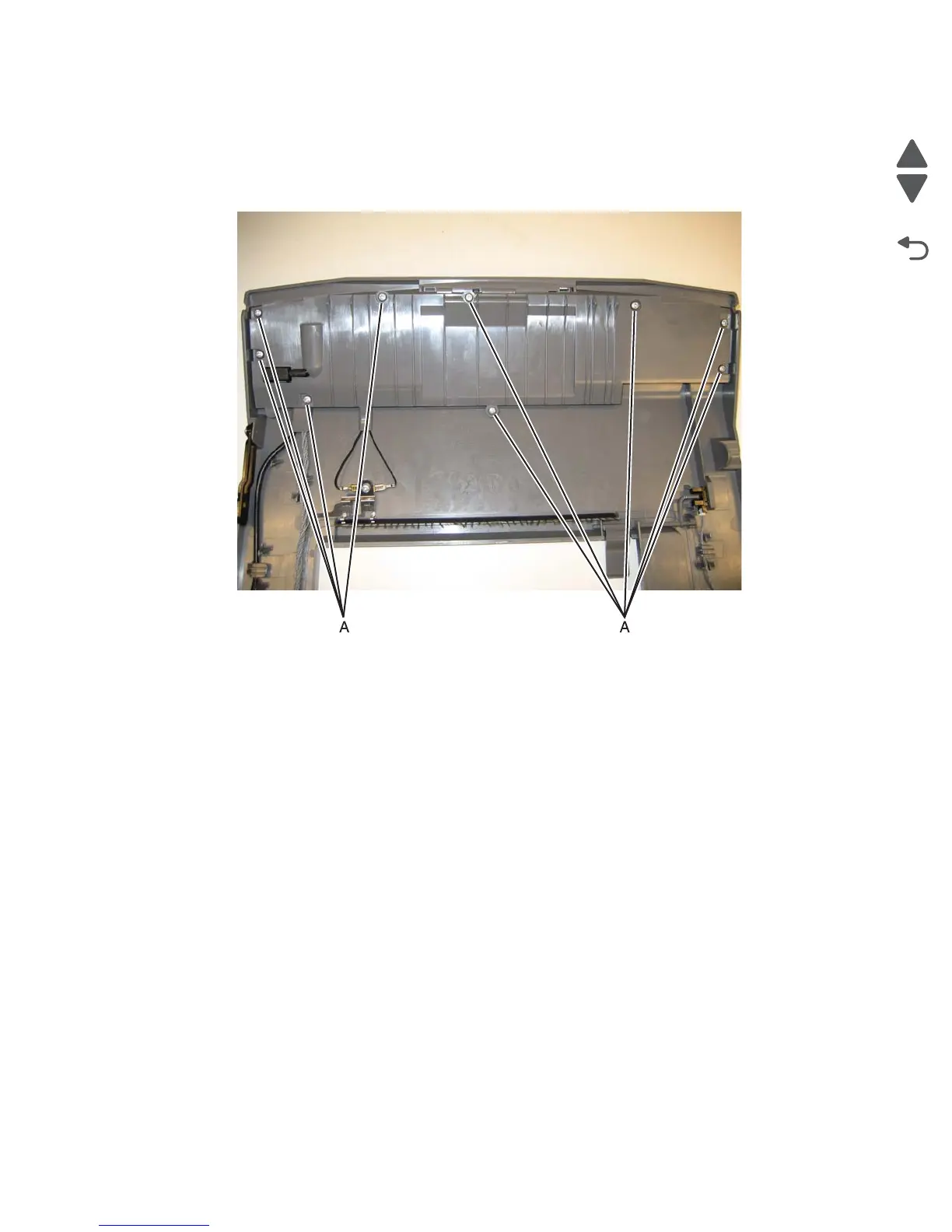

2. Remove the nine screws (A), and remove the position guide.
