4-66 Service Manual

5026

Go Back

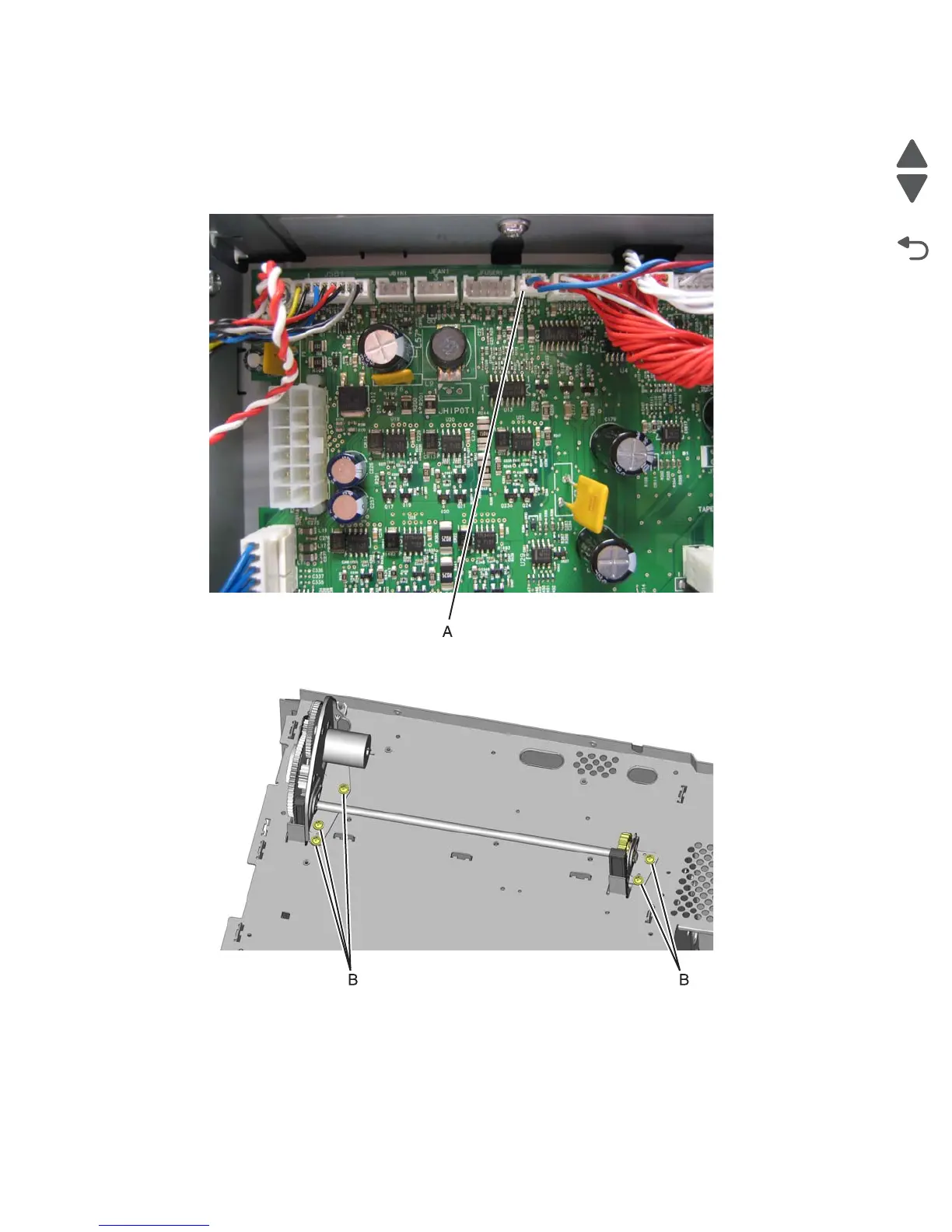

Color on demand assembly removal

1. Remove the print cartridges.

2. Remove the top cover assembly. See “Top cover assembly removal” on page 4-43.

3. Disconnect the connector at JBOR1 (A) on the system board.

4. Remove the five screws (B).

5. Remove the COD assembly.
