Repair information 4-67

5026

Go Back

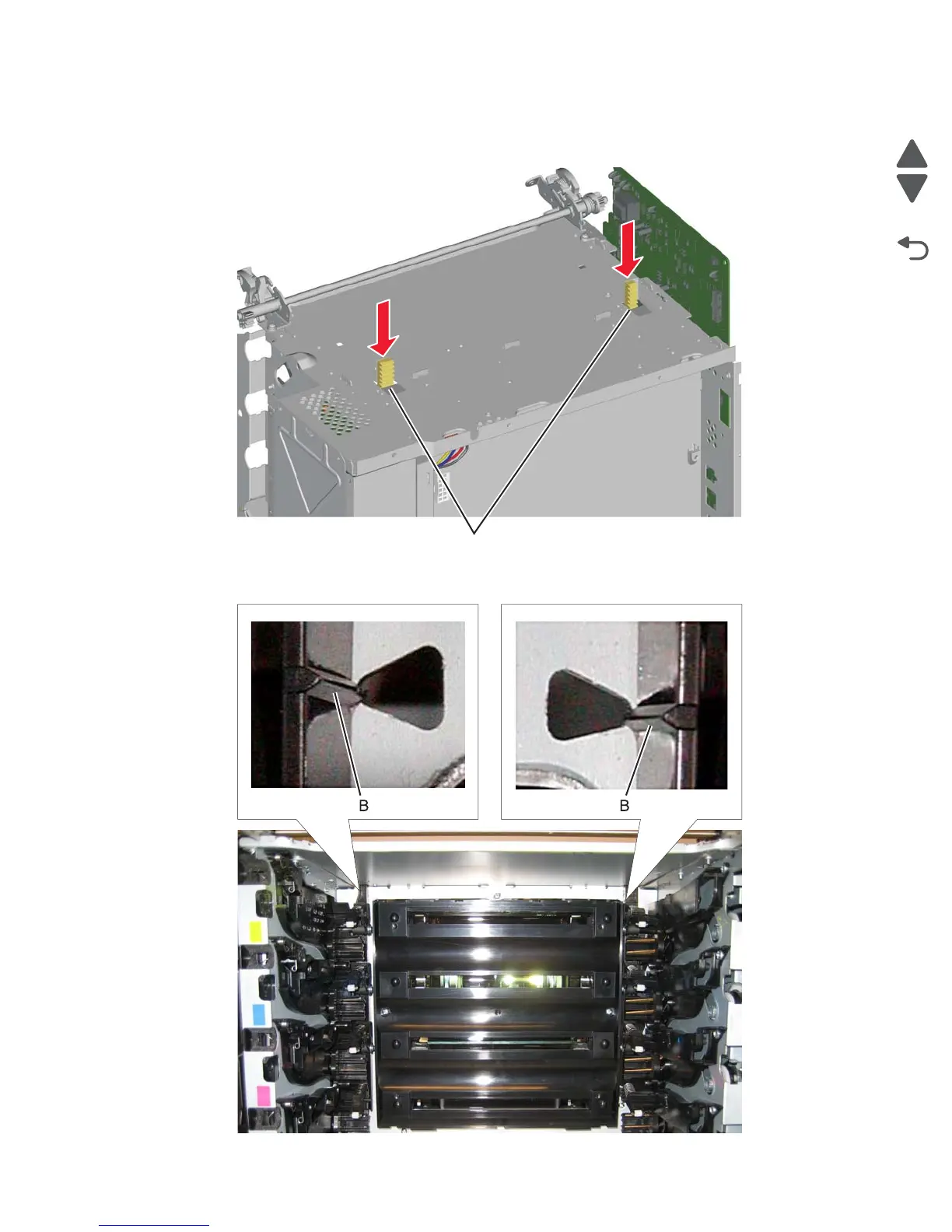

Installation notes:

1. Push the actuators (A) all the way down.

2. Turn the printer around, and verify the actuators are in the correct location by looking inside the front of the

printer. The actuators (B) should be visible in the triangular holes in the frame, as shown.
