Pick arm roll removal and replacement
See “Pick arm roll” on page 7-5 for the part number.
The autocompensator pick roll tires are located in the base printer. There are also tires in all input options. If you
have additional input options, and you are having problems with media picking, replace these tires also. Always
replace the pick arm rolls in pairs. The rolls come in a package of two.
Warning: Remove only the rubber tires and not the pick tire assembly to avoid losing small parts.
1. Remove the paper tray.

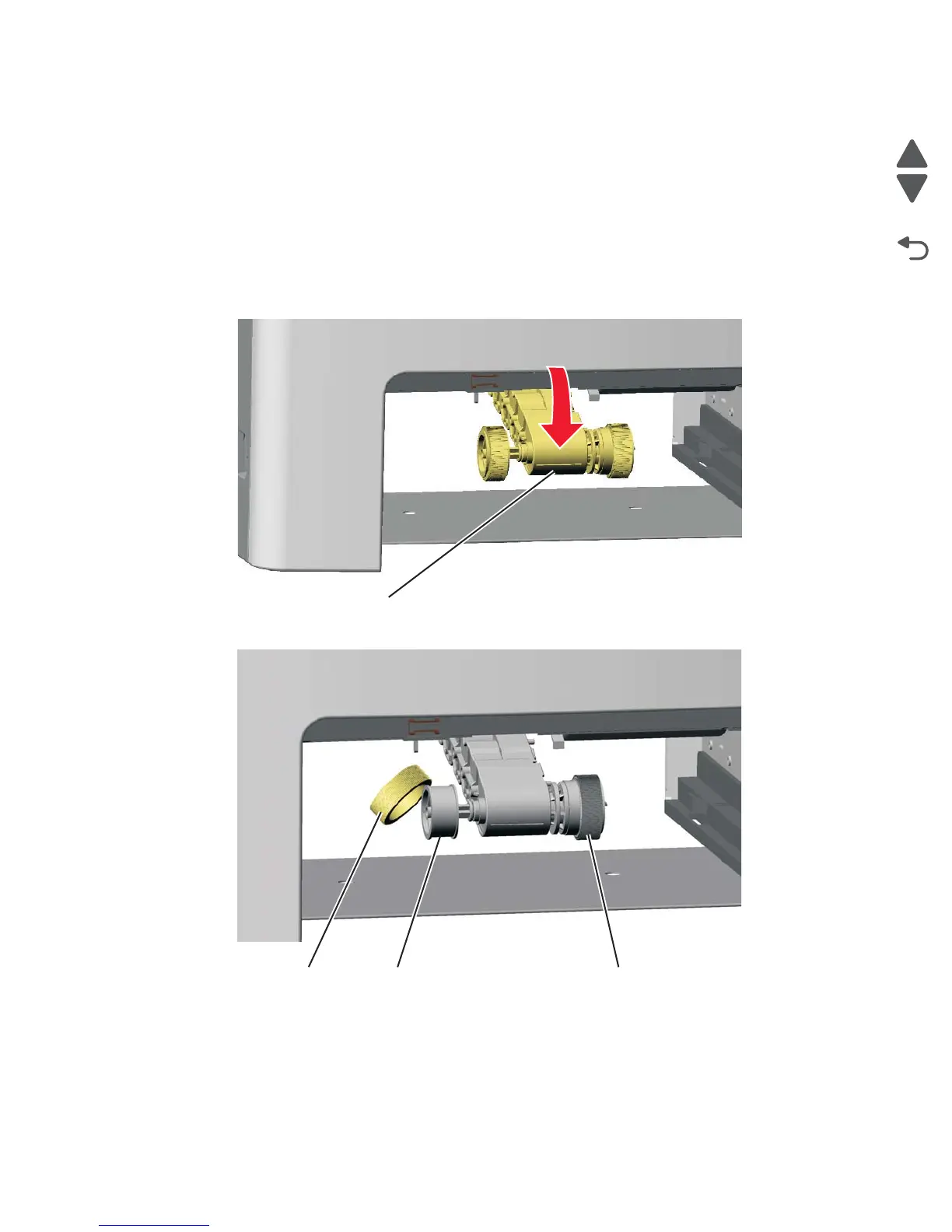

2. Pull the paper pick arm (A) down.
3. Remove the pick arm roll (B) from the pick arm roll assembly (C). Repeat for the other pick arm roll (D).
A
BC D
