Lexmark C734dn Service Manual

Diagnostic information 2-113
5026
Go Back
Previous
Next

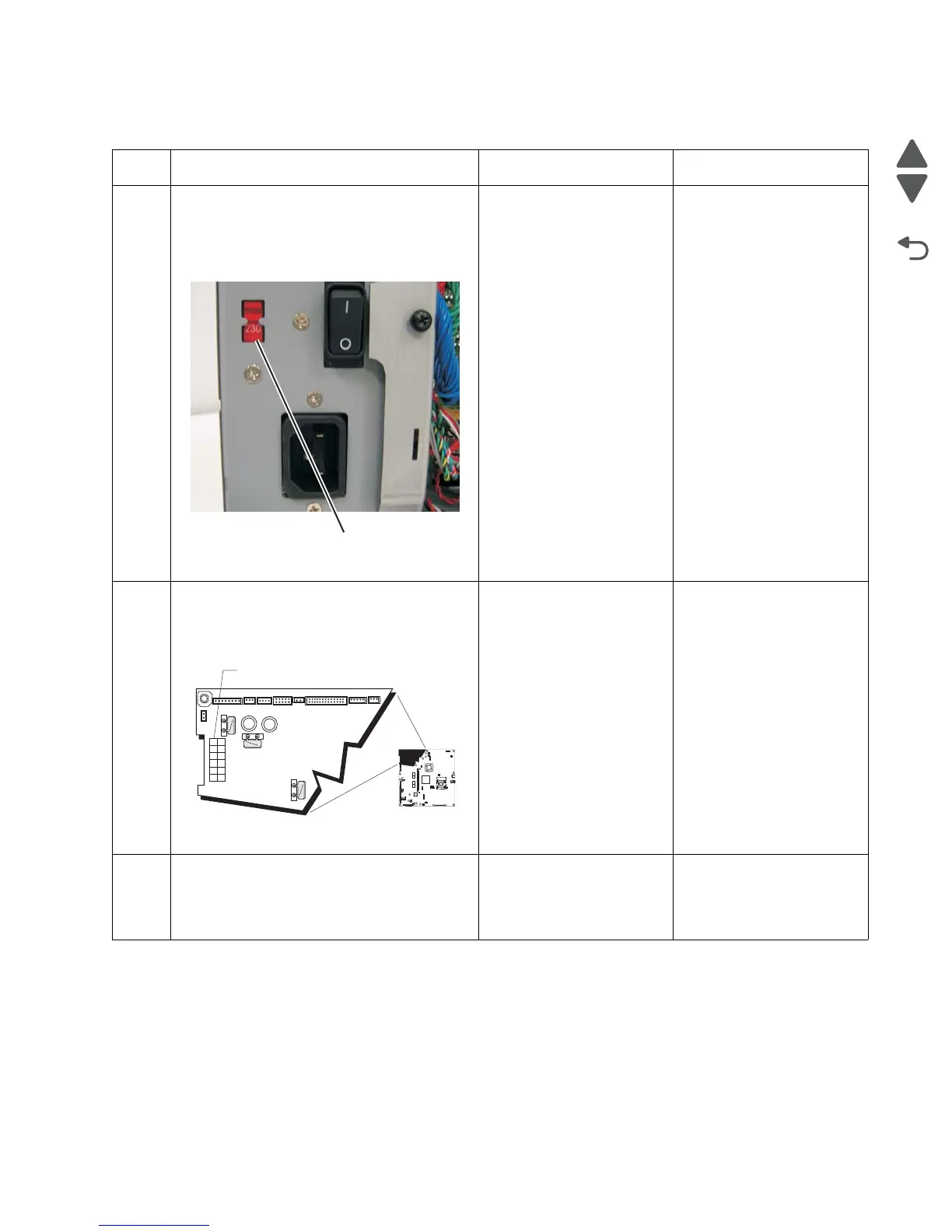

920.21—POST (power-on self test)—24 V power supply failure error service check
Step Questions / actions Yes No
1 Check the input voltage switch on the back of
the low-voltage power supply (LVPS).
Some LVPS FRU do not have switches and
switch automatically. If your does not have a
switch, go to step 2.
Is the voltage level (115/230) properly set?
Go to step 2. Set switch for the proper
country voltage.
2
Turn the printer off, and then remove the rear
frame cover. See “Rear frame cover
removal” on page 4-33.
Reseat the cable in connector JLVPS2 (A).
Does the error clear?
Problem resolved. Go to step 3.
3
Check the cable JLVPS2 for pinch points and
any other damage to the cable or connector.
Is the cable damaged?
Replace the low-voltage
power supply. See “Low-
voltage power supply
(LVPS) removal” on
page 4-112.
Go to step 4.
