Operator panel buttons removal
1. Remove the top access door cover assembly. See “Top access cover assembly removal” on
page 4-40.
2. Turn the top access cover assembly over.

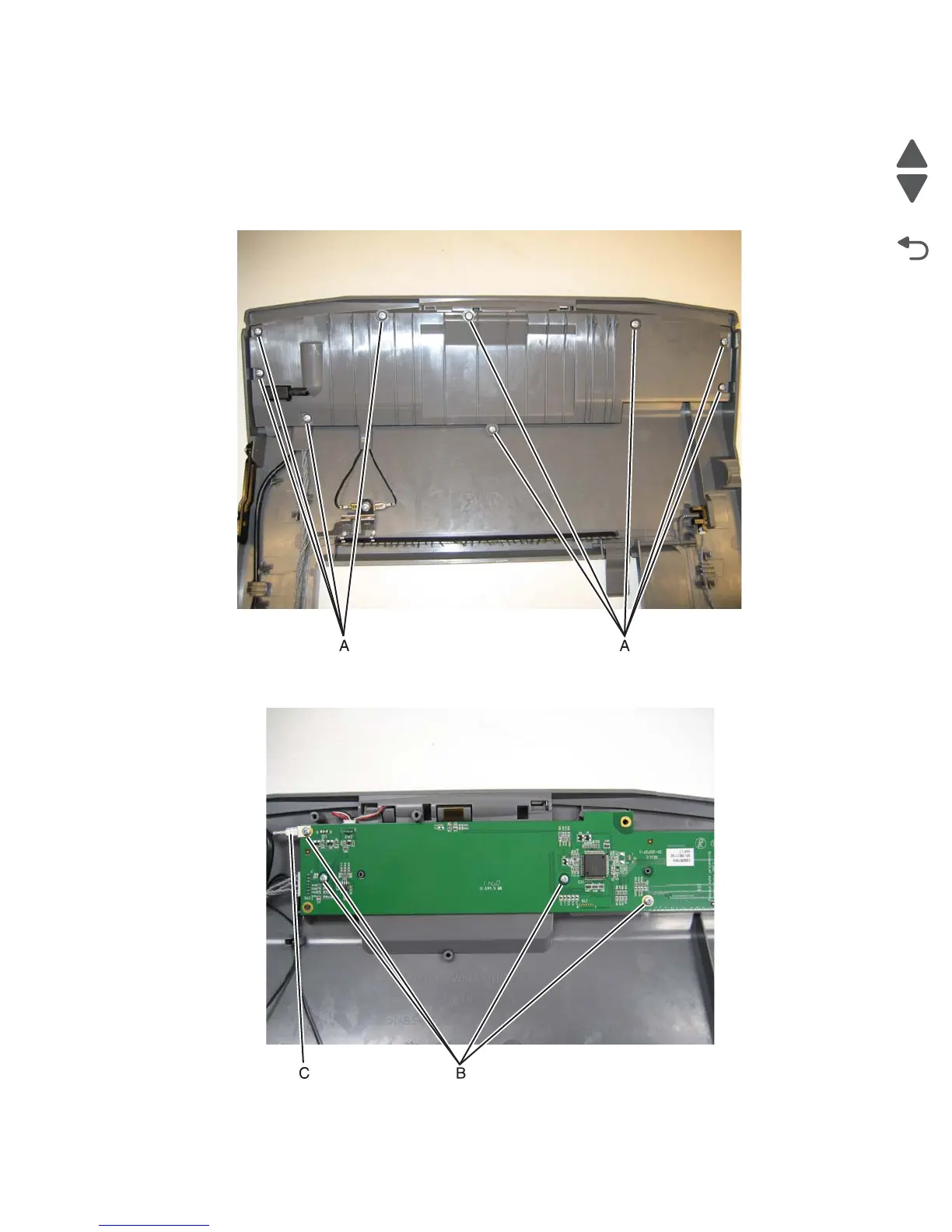

3. Remove the nine screws (A) securing the position guide.
4. Remove the four screws (B) from the operator panel card.
Note: Observe the position of the ground cable (C).
