4-106 Service Manual
5026
Fuser DC cable removal
Note: The fuser to system board autoconnect cable is red.
1. Remove the top cover assembly. See “Top cover assembly removal” on page 4-43.
2. Turn the top cover assembly over.

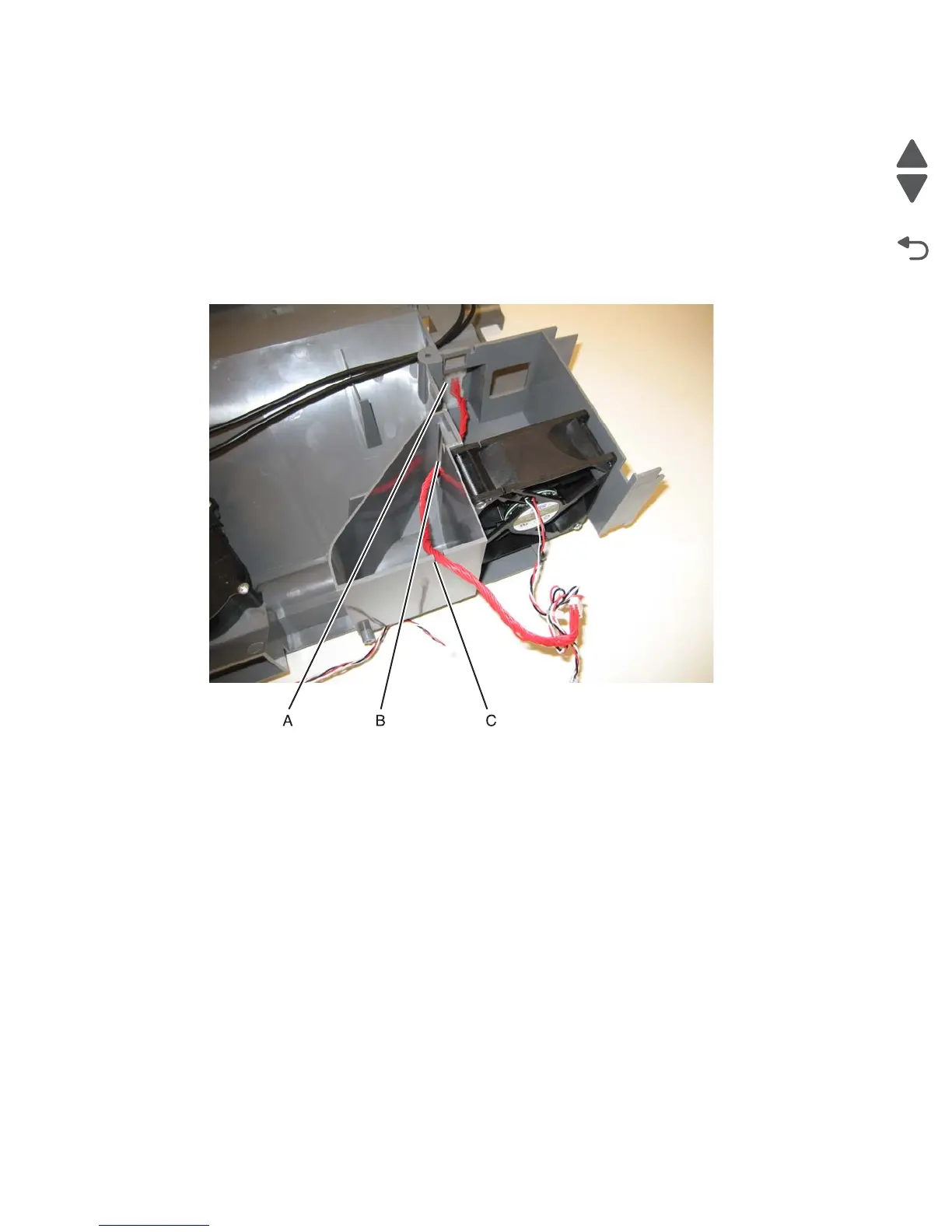

3. Remove the connector (A) from the top cover assembly.
Warning: You will damage the old connector in the process. Be careful not to damage the top cover
assembly.
4. Pull the cable through the hole (B) in the top cover assembly, and the notch (C).
To Next Page
