Diagnostic information 2-111
5026
920.19—POST (power-on self test)—Transfer module stepper motor not connected
error service check
4
Measure the resistance across the fuse F10
on the system board.
Is the fuse blown?
Replace the system board.
See “System board
removal” on page 4-153.
Replace the EP drive
assembly. See
“Electrophotographic
(EP) drive assembly
removal” on page 4-82.
Step Questions / actions Yes No
1 Turn the printer off, and then remove the rear
frame cover. See “Rear frame cover
removal” on page 4-33.
Reseat the motor driver cable in connector
JDVR1 (A).
Does the error clear?
Problem resolved. Go to step 2.
2
Remove the right cover. See “Right cover
removal” on page 4-37.

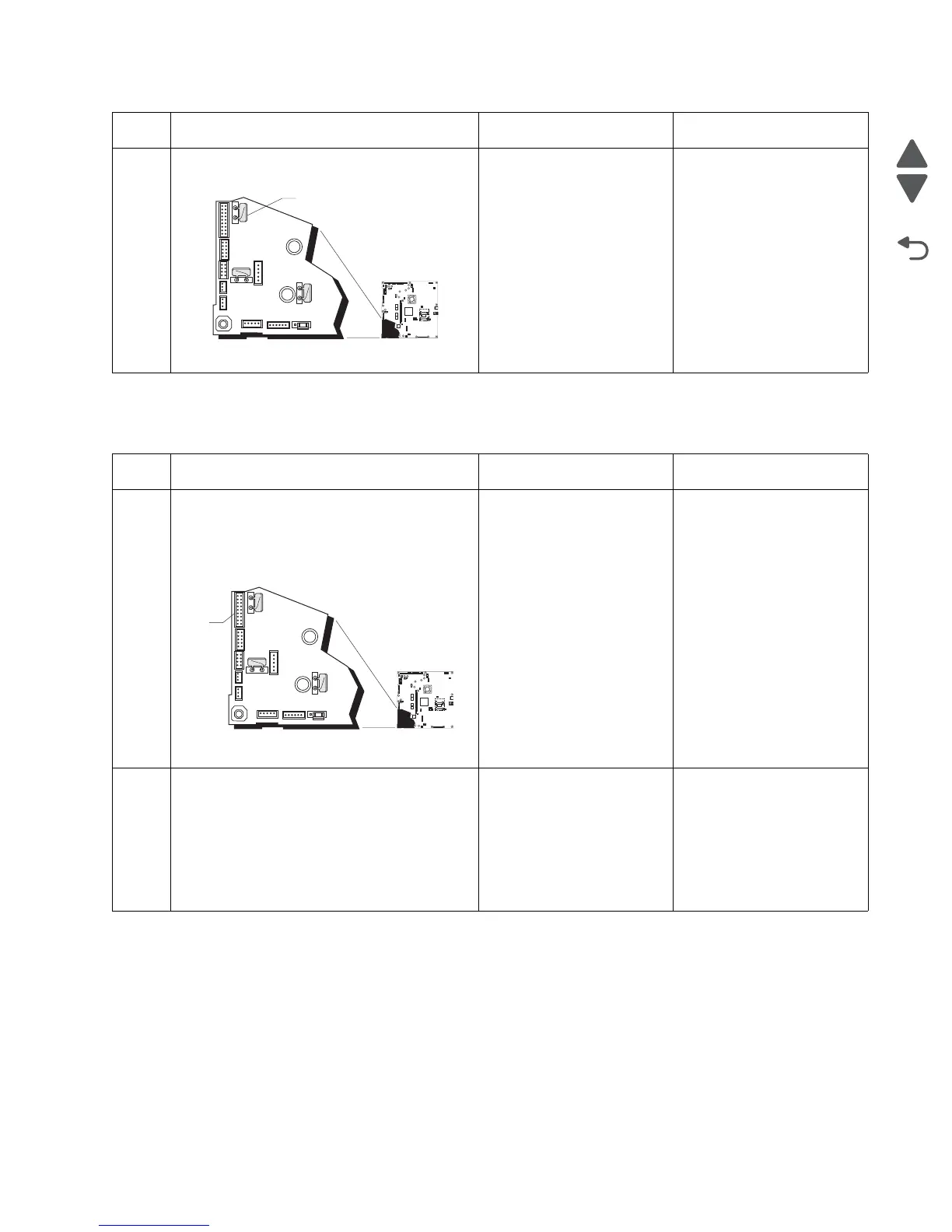

Check the motor driver cable in connector
JDVR1 on the system board for pinch points
or any other damage to the cable or
connector. Also check the connector on the
motor drive card.
Is the cable damaged?
Replace the motor driver
cable. See “Motor driver
cable removal” on
page 4-115.
Go to step 3.
