Lexmark C734dn Service Manual

2-124 Service Manual
5026
Go Back
Previous
Next

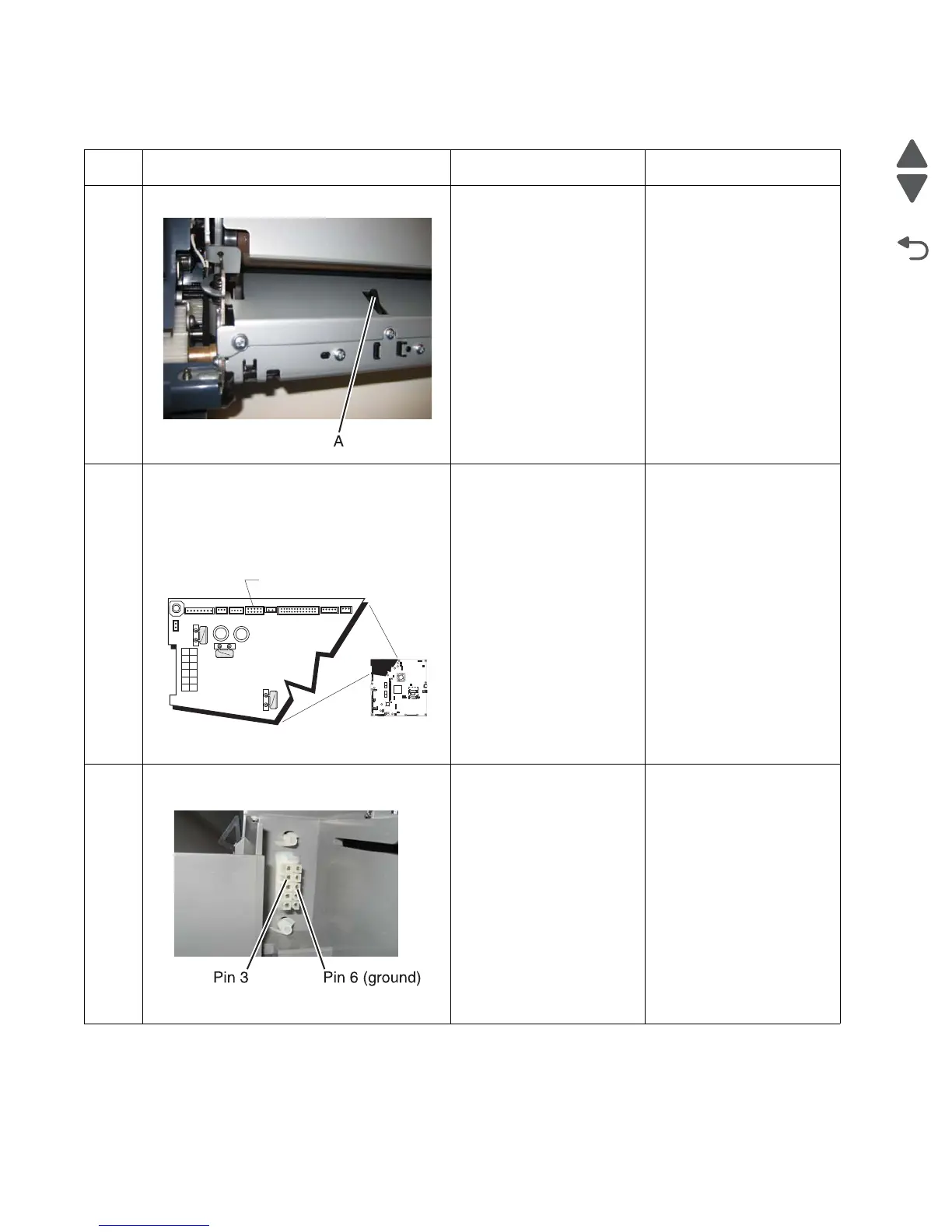

Bubble sensor service check
Step Questions / actions Yes No
1 Is the bubble sensor flag damaged? Replace the fuser. See
“Fuser removal” on
page 4-104.
Go to step 2.
2
Remove the rear frame cover. See “Rear
frame cover removal” on page 4-33.
Check the fuser DC cable in connector
JFUSER1 (A) for proper connection to the
system board, pinch points, and any other
damage to the cable or connector.
Is the cable damaged?
Replace the fuser DC
cable. See “Fuser DC
cable removal” on
page 4-106.
Go to step 3.
3
Place a voltmeter between the fuser DC
autoconnect, pin 3 and ground (pin 6).
Does the voltage meter read +5 V dc?
Go to step 5. Go to step 4.
1
JSB1
JBIN1
JFAN1
JFUSER1
JBOR1
JHVPS1
JMIRR1
JBLW1
JCVR1
JLVPS2
JCARTP1
JCARTS1
JCARTS2
JCARTP2
JDVR1
JTPS1
JOPT1
JFDS1
JINT1
JFDPCK1JTRAY1JSEC1
JDX1
JT12
J5
JDIMM1
JOPP1
JT1
JUSB1
JBOOT1
JFMUSB1
J49
JTWF1
JTDBUG1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
JTLBT1
JPH1
F5
F6
F7
F9
F10
F12
F13
F14
1
1
J10
1
1
A
