Operator panel cable removal

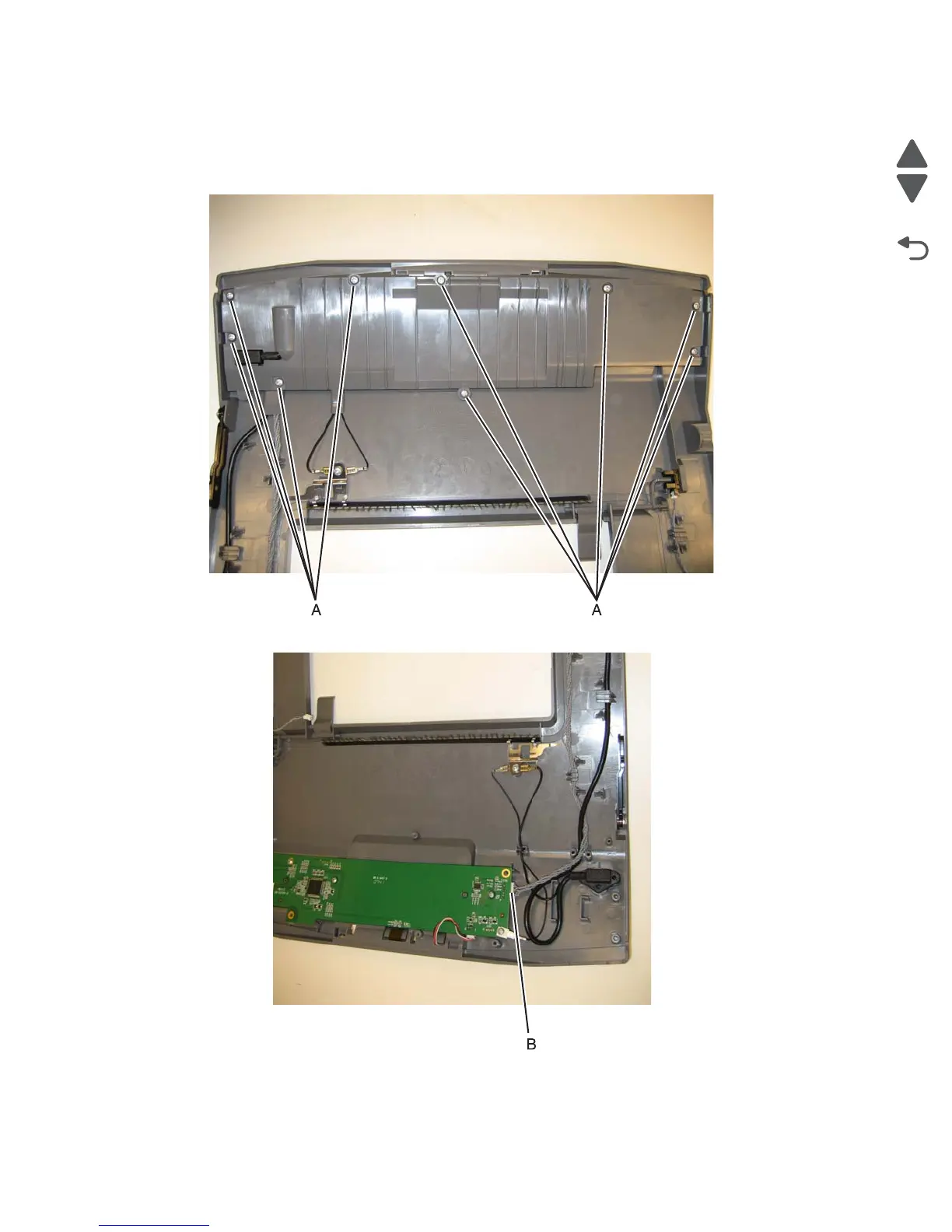

1. Remove the top access cover assembly. See “Top access cover assembly removal” on page 4-40.

2. Remove the nine screws (A), and remove the position guide.

3. Disconnect the operator panel cable connector (B) from the operator panel card.
