Lexmark C734dn - Bin Full Sensor Flag Removal; Bin Full Sensor Removal

Repair information 4-53
5026
Go Back
Previous
Next
Bin full sensor flag removal
1. Remove the top access cover assembly. See “Top access cover assembly removal” on page 4-40.

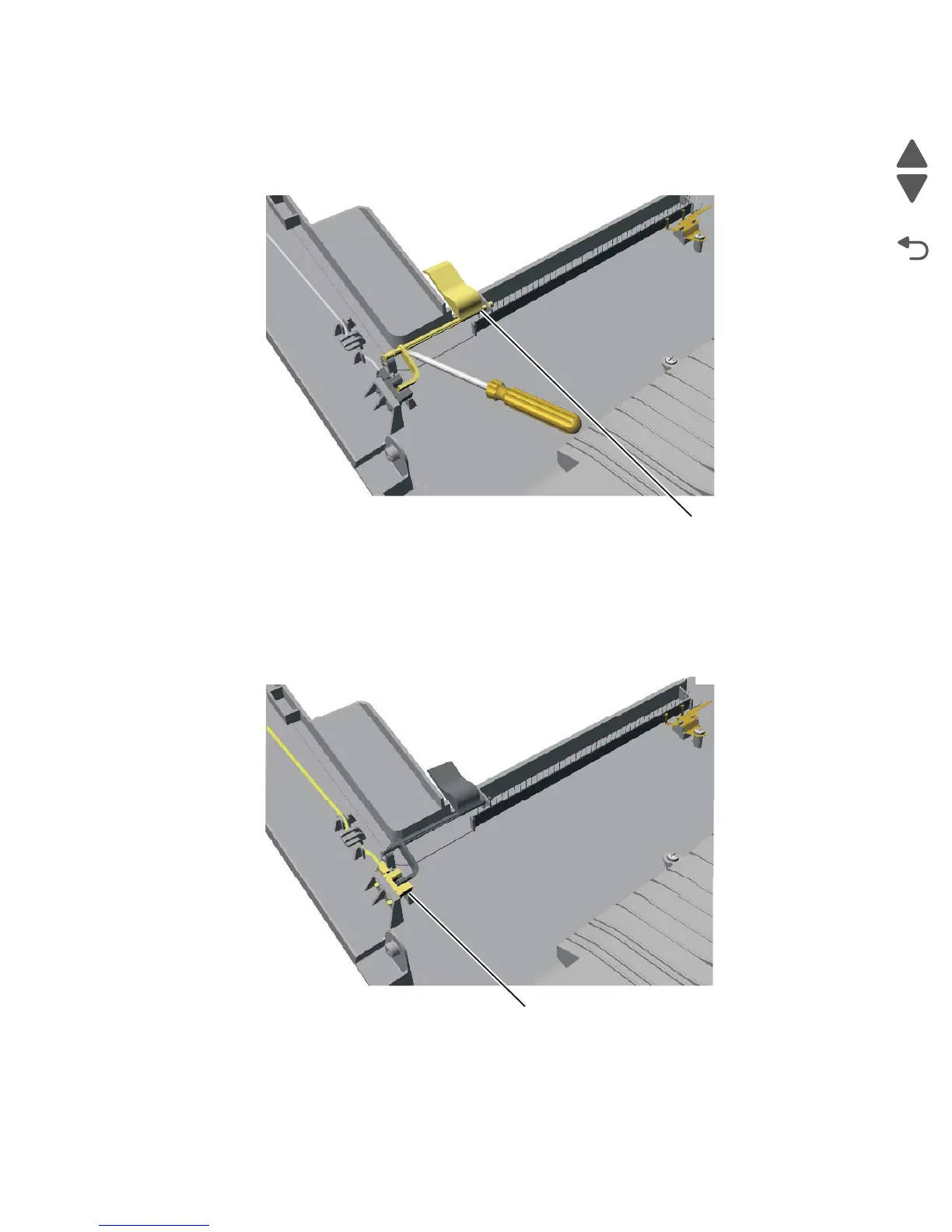

2. Turn the top access cover over, and use a flatblade screwdriver to carefully remove the flag (A).
Bin full sensor removal
See “Bin full sensor with cable” on page 7-3 for the part number.
1. Remove the top access cover assembly. See “Top access cover assembly removal” on page 4-40.
2. Turn the top access cover over, and press the side of the bin full sensor (A) to snap it loose from the cover.
3. Remove the bin full sensor and cable.
A
A
